| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 7-07 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Voltage: | 380V/415V/440V/660V/6KV/10KV | Material: | Carbon Steel/Alloy Steel/Stainless Steel |
|---|---|---|---|
| Bearing Cooling: | Air Cooling Or Circulating Water Cooling | Motor Type: | Three Phase AC Motor |
| Main Shaft: | High-strength Carbon Structural Steel | Noise: | Optional |
| High Light: | Anti Explosion Cement Fan,3862 Pa Cement Fan,2188 Pa explosion proof centrifugal fan |
||

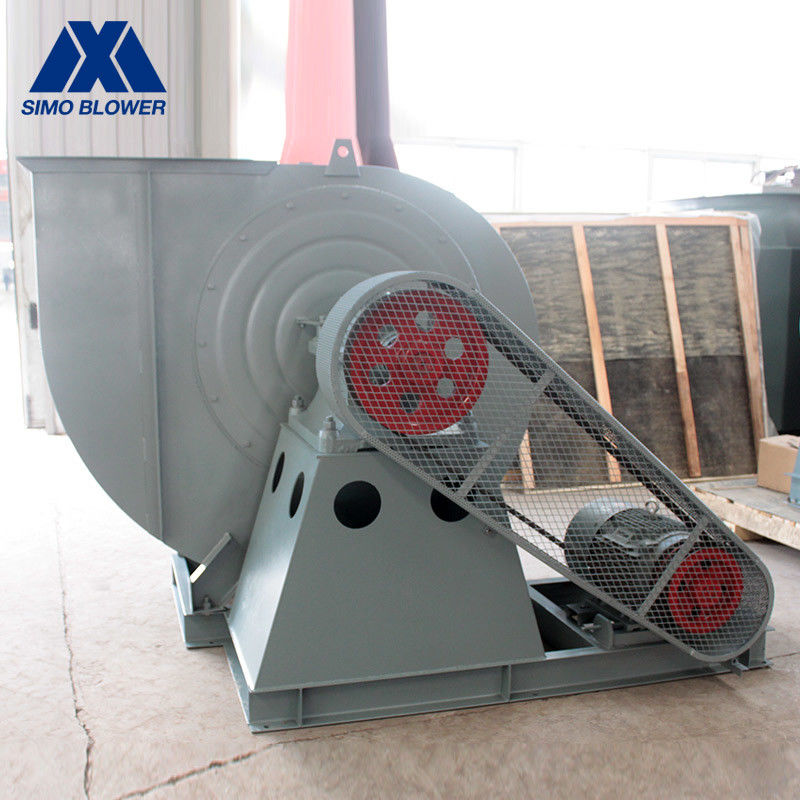

Aluminium Alloyed Medium Pressure Anti-Explosion Cement Rotary Kiln Fan
Introduction
The 7-07 series high-pressure centrifugal fan has a high output pressure, can transport normal temperature or high temperature various gases and various forms of materials, and also can be used in harsh working environments.
Such as conveying high temperature/harmful/dangerous gas, hard particles, powder, debris, fiber, forced ventilation, industrial dust collectors, air filtration systems, flue gas desulfurization, flue gas denitration, industrial boiler forced draft and induced draft fan, the material conveying of the various back kiln & calcining kiln, the induced draft of the smelting furnace and the casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, etc.
Detail introduction
1. In the use of common base, the installation is very simple and requires little support from a professional technician.
2. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.
3. For dusty gases, we are able to satisfy a wide range of conditions from a small amount of dust to a very high dust content, after special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller more than 3 times.
4. The parts are tightly matched and the sealing performance is good, ensuring that the output pressure will not decrease.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 7-07 | 5C | 3030 | 2982 ~ 3456 | 4486 ~ 8971 | 11 ~ 15 |
| 5.6C | 2360 | 2623～2264 | 4909～9817 | 11 | |
| 7.1C | 1830 ~ 2450 | 2188 ~ 3862 | 7757～20771 | 15 ~ 30 | |
| 8C | 1910 | 3517～3034 | 11582～23164 | 30 | |
| 9C | 1570 | 3002～2591 | 13555～27111 | 30 | |
| 10C | 1470 ~ 1650 | 2806 ~ 4109 | 17410 ～ 36478 | 45 ~ 55 |
Product Features
1. By ultrasonic flaw detection for the impeller welding line and main shaft, ensure that there are no weld defects and material defects to ensure strength.
2.The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
3.After the completion of production, after running test and vibration value detection, reliable operation.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
