Q345 Industrial Centrifugal Extractor Fan Energy Saving Wear Resistant

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Bearing Type: Rolling Bearing Mounting: Free Standing
Drivetrain: Direct/Coupling Driven/V-belt Driven Type: Centrifugal Fan
Medium: Clean Air/Dusty Air
High Light:

Q345 Industrial Centrifugal Extractor Fan

,

1450r/min Industrial Centrifugal Extractor Fan

,

Q345 industrial high pressure blower

Q345 Energy Saving Wear Resistant Industrial Boiler Centrifugal Fan



Introduction



G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.

In addition to the industrial system, it is also frequently used in agriculture and civil applications and the most versatile range of centrifugal fans.



SIMO Blower



Xinxiang SIMO BLOWER CO., LTD. which was founded in 1955, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, which covers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year.

There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8D 1450 21041400 1615630993 18.55
9D 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10D 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11D 730 ~ 1450 669 ~ 4003 21144 80570 11 ~ 90
12D 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14D 730 ~ 1450 1086 ~ 6541 43591 166100 37 ~ 315
16D 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18D 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20D 580 ~ 960 1400 ~ 5837 100970 320610 110 ~ 520
22D 480 ~ 960 1216 ~ 6865 116000 434000 140 ~ 850
25D 480 ~ 730 1579 ~ 5138 171000 484000 165 ~ 700
28D 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5D 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600


Product Features



1. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.

2. Fan systems with impeller diameters less than 1400 mm at normal temperature do not require additional bearing cooling devices, reducing users’ investment and maintenance.

3. The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

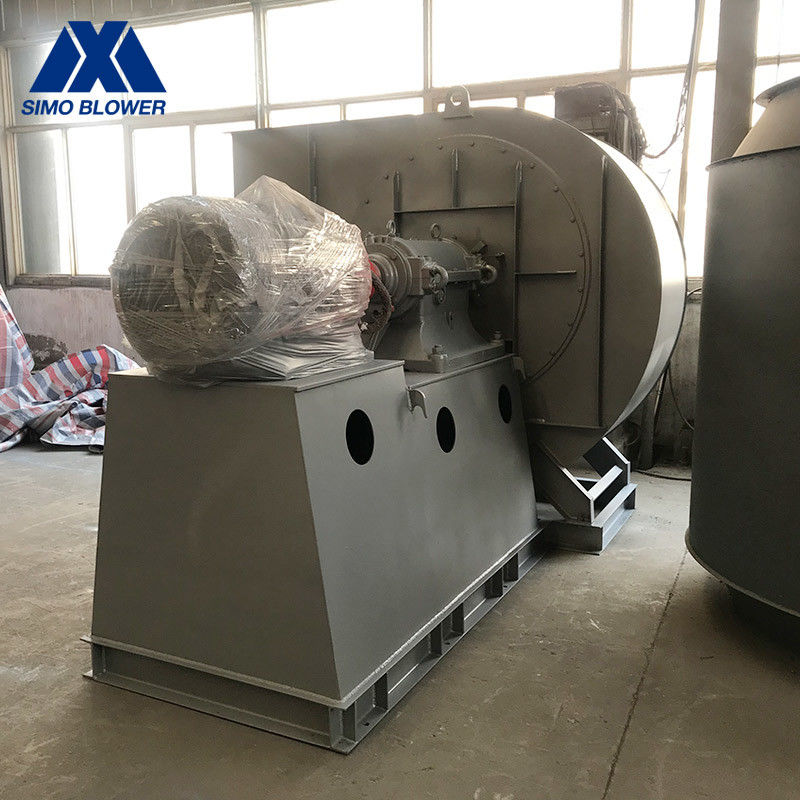

Q345 Industrial Centrifugal Extractor Fan Energy Saving Wear Resistant 0
