Q345 High Pressure CFB Boiler Flue Gas Fan Corrosion Resistant

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
After-sales Service Provided: Field Installation, Commissioning And Training Current Type: AC
Motor Type: Three Phase AC Motor Noise: Optional
High Light:

CFB Boiler Flue Gas Fan

,

Q345 Boiler Flue Gas Fan

,

CFB boiler flue gas blower

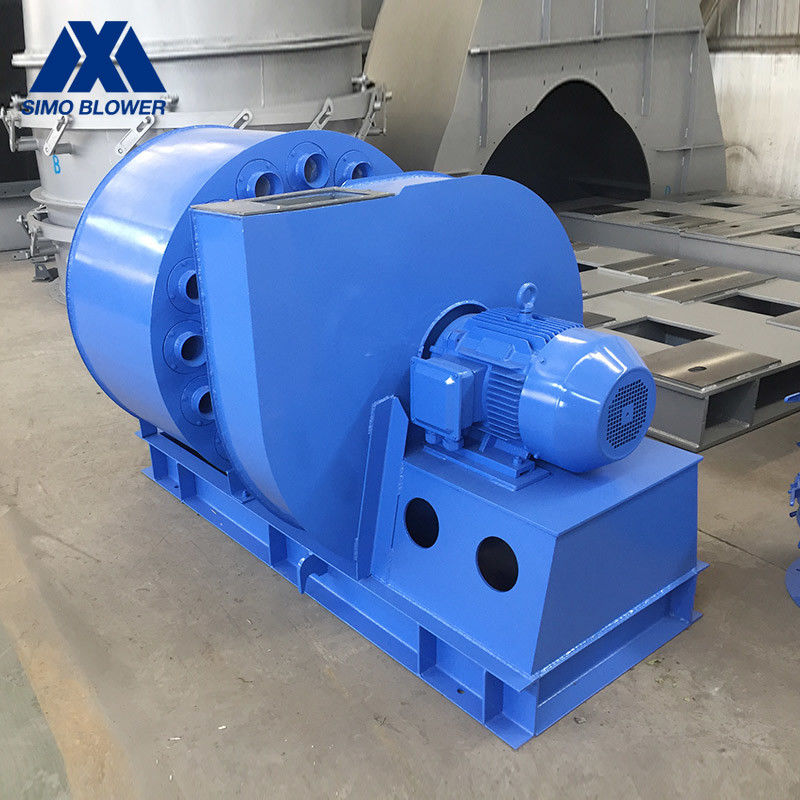

Q345 High Pressure Corrosion Resistant CFB Boiler Flue Gas Fan



Introduction



The fan is suitable for equipped with economizer (heater) and smoke and dust removal device.

It is a high-efficiency energy-saving product jointly designed by the national fan industry and organized by the national wind power industry and the Ministry of Machinery Industry.

It has the characteristics of high efficiency, low noise, flat performance curve and wide efficient area.

Industrial boilers of 5 ~ 35 tons/hour can be used, those with similar intake conditions and suitable performance can be used, but the maximum temperature shall not more than250°C.

Before the induced draft fan, dust removal device with a dust removal efficiency of no less than 85% must be installed to reduce the dust content of the smoke entering the fan.



Product Features



1. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.

2. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

3.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

4. Running test and vibration value detection after the production is completed, the fan operation is reliable.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-10 4A 2900 32533597 8241704 2.23
4.5A 2900 41124603 11742504 45.5
5A 2900 50805697 16103488 7.511
5.6A 2900 64007182 22624901 1115
6.3A 2900 81489149 32206978 18.530
7.1A 2900 1042611717 46109988 3755

FAQ



1.Q: What’s the MOQ of your company ?

A: The MOQ is 1set.

2.Q: How long is the delivery time ?

A:5-35 days.

3.Q : What’s your payment terms ?

A : T/T, L/C, or Negotiable.

4.Q: What’s your warranty ?
A: 1 year.

5.Q: Is your company factory or trade company ?

A: We have our own factory, our type is factory +trade.
