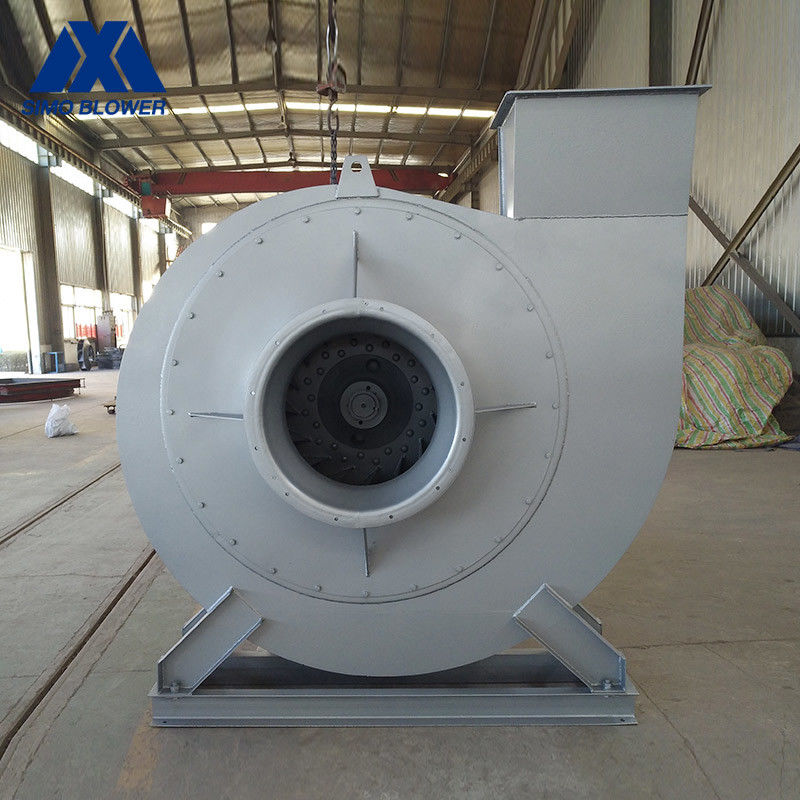

Heavy Duty Furnace Flue Gas Centifugal Blower Fan Long Lifetime

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
After-sales Service Provided: Field Installation, Commissioning And Training Current Type: AC
Lubrication: Oil Bath Lubrication Main Shaft: High-strength Carbon Structural Steel
High Light:

Flue Gas Centifugal Blower Fan

,

Furnace Centifugal Blower Fan

,

Furnace flue gas blower

Heavy Duty Long Lifetime Furnace Flue Gas Centifugal Blower Fan



Introduction



The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.

The temperature of the medium generally does not exceed 50 ° C (maximum not more than 80 ° C). The dust and hard particles contained in the medium are not more than 150 mg/m3.

For flammable and explosive gas transportation, the impeller can be processed with aluminum alloy to prevent sparks during operation.



Product Features



1.The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.

2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.

3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.

4. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-08 7.1D 2900 1063512427 1229219360 75110
8D 14502900 324915955 879227696 18.5200
9D 1450 41814869 1251819717 3045
10D 1450 50656143 1717230052 5575
11.2D 9601450 30317747 1597342221 30132
12.5D 9601450 34509713 2220658695 45250
14D 9601450 434112285 3119782463 75400
16D 9601450 569616250 46569123090 185850



FAQ



1.Q: What’s the MOQ of your company ?

A: The MOQ is 1set.

2.Q: How long is the delivery time ?

A:5-35 days.

3.Q : What’s your payment terms ?

A : T/T, L/C, or Negotiable.

4.Q: What’s your warranty ?
A: 1 year.

5.Q: Is your company factory or trade company ?

A: We have our own factory, our type is factory +trade.
