| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-08 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| After-sales Service Provided: | Field Installation, Commissioning And Training | Current Type: | AC |
| Lubrication: | Oil Bath Lubrication | Color: | Customer's Requirement |
| High Light: | Metallurgy Flue Gas Fan,19360 M3/H Flue Gas Fan,Metallurgy boiler flue fan |
||

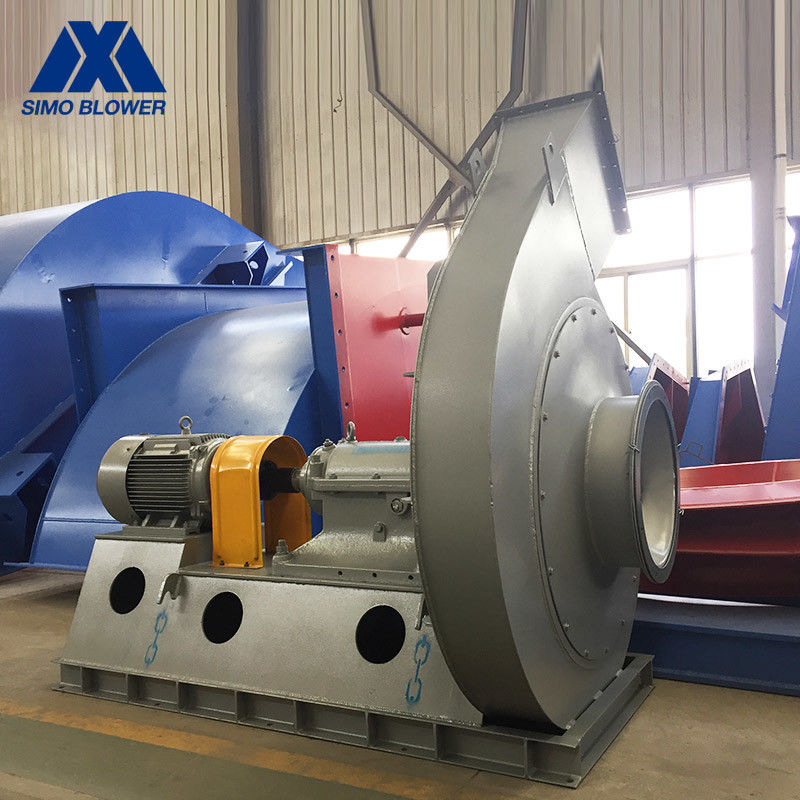

Energy Efficiency Forward Antifraying Metallurgy Flue Gas Fan
Introduction
The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.
The temperature of the medium generally does not exceed 50 ° C (maximum not more than 80 ° C). The dust and hard particles contained in the medium are not more than 150 mg/m3.
For flammable and explosive gas transportation, the impeller can be processed with aluminum alloy to prevent sparks during operation.
Product Features
1. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.
2. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.
3. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
4.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.
5. Running test and vibration value detection after the production is completed, the fan operation is reliable.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-08 | 7.1D | 2900 | 10635～12427 | 12292～19360 | 75～110 |
| 8D | 1450～2900 | 3249～15955 | 8792～27696 | 18.5～200 | |
| 9D | 1450 | 4181～4869 | 12518～19717 | 30～45 | |
| 10D | 1450 | 5065～6143 | 17172～30052 | 55～75 | |
| 11.2D | 960～1450 | 3031～7747 | 15973～42221 | 30～132 | |
| 12.5D | 960～1450 | 3450～9713 | 22206～58695 | 45～250 | |
| 14D | 960～1450 | 4341～12285 | 31197～82463 | 75～400 | |
| 16D | 960～1450 | 5696～16250 | 46569～123090 | 185～850 |
FAQ
1.Q: What’s the MOQ of your company ?
A: The MOQ is 1set.
2.Q: How long is the delivery time ?
A:5-35 days.
3.Q : What’s your payment terms ?
A : T/T, L/C, or Negotiable.
4.Q: What’s your warranty ?
A: 1 year.
5.Q: Is your company factory or trade company ?
A: We have our own factory, our type is factory +trade.
