| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-08 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | Feature: | High Performance |
|---|---|---|---|
| Blade: | Forward / Backward/Backward Curved | Current Type: | AC |
| Lubrication: | Oil Bath Lubrication | ||
| High Light: | Single Suction Flue Gas Exhaust Fan,Anti Explosion Flue Gas Exhaust Fan,Single Suction flue gas blower |
||

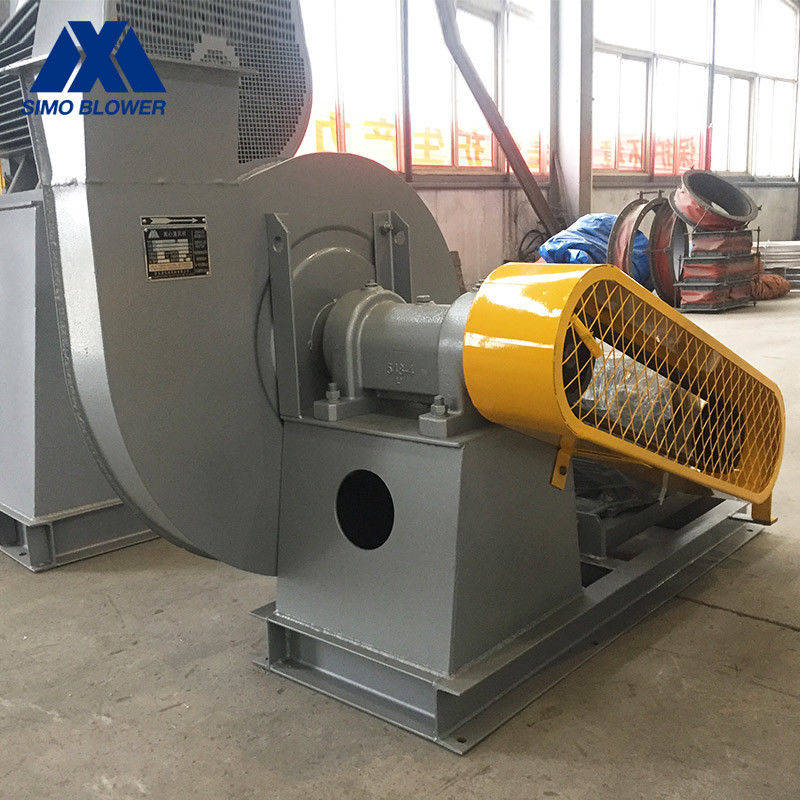

Carbon Steel Single Suction Anti-Explosion Smoke Exhaust Flue Gas Fan
Introduction
The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.
The temperature of the medium generally does not exceed 50 ° C (maximum not more than 80 ° C). The dust and hard particles contained in the medium are not more than 150 mg/m3.
For flammable and explosive gas transportation, the impeller can be processed with aluminum alloy to prevent sparks during operation.
Product Features
1.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.
2. Running test and vibration value detection after the production is completed, the fan operation is reliable.
3.The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.
4. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-08 | 7.1C | 2900 | 10635～12427 | 12292～19360 | 75～110 |
| 8C | 1450～2900 | 3249～15955 | 8792～27696 | 18.5～200 | |
| 9C | 1450 | 4181～4869 | 12518～19717 | 30～45 | |
| 10C | 1450 | 5065～6143 | 17172～30052 | 55～75 | |
| 11.2C | 960～1450 | 3031～7747 | 15973～42221 | 30～132 | |
| 12.5C | 960～1450 | 3450～9713 | 22206～58695 | 45～250 | |
| 14C | 960～1450 | 4341～12285 | 31197～82463 | 75～400 | |
| 16C | 960～1450 | 5696～16250 | 46569～123090 | 185～850 |
FAQ
1.Q: What’s the MOQ of your company ?
A: The MOQ is 1set.
2.Q: How long is the delivery time ?
A:5-35 days.
3.Q : What’s your payment terms ?
A : T/T, L/C, or Negotiable.
4.Q: What’s your warranty ?
A: 1 year.
5.Q: Is your company factory or trade company ?
A: We have our own factory, our type is factory +trade.
