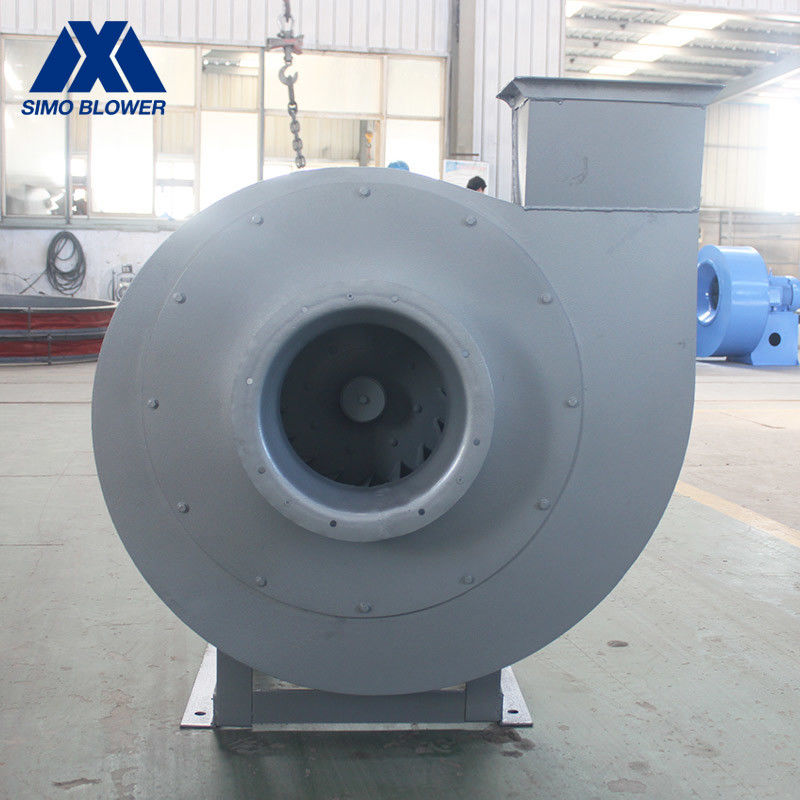

High Air Flow 13525m3/h Industrial Boiler FD Flue Gas Fan Energy Saving

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Material: Carbon Steel/Alloy Steel/Stainless Steel Bearing: SKF/FAG/By Your Demand
Voltage: 380V/415V/440V/660V/6KV/10KV Blade: Forward / Backward/Backward Curved
Current Type: AC Lubrication: Oil Bath Lubrication
High Light:

Boiler FD Flue Gas Fan

,

13525m3/H Flue Gas Fan

,

13525m3/H boiler flue fan

High Air Flow Energy Saving Industrial Boiler FD Flue Gas Fan



Introduction



The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.

The temperature of the medium generally does not exceed 50 ° C (maximum not more than 80 ° C). The dust and hard particles contained in the medium are not more than 150 mg/m3.

For flammable and explosive gas transportation, the impeller can be processed with aluminum alloy to prevent sparks during operation.



Product Features



1.The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.

2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.

3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.

4. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.

5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-08 4A 2900 38523407 21983215 5.5
4.5A 2900 42564910 31304792 7.511
5A 2900 51806035 42936762 1518.5
5.6A 2900 35277610 60329500 2230
6.3A 2900 83109698 858813525 4555



FAQ



1.Q: What’s the MOQ of your company ?

A: The MOQ is 1set.

2.Q: How long is the delivery time ?

A:5-35 days.

3.Q : What’s your payment terms ?

A : T/T, L/C, or Negotiable.

4.Q: What’s your warranty ?
A: 1 year.

5.Q: Is your company factory or trade company ?

A: We have our own factory, our type is factory +trade.
