| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | Drivetrain: | Direct/Coupling Driven/V-belt Driven |
|---|---|---|---|
| Bearing: | SKF/FAG/By Your Demand | Voltage: | 380V/415V/440V/660V/6KV/10KV |
| Motor: | SIEMENS/ABB/By Your Demand | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
| High Light: | 16Mn Flue Gas Fans And Blowers,Backward Flue Gas Fans And Blowers,Backward flue gas blower |
||

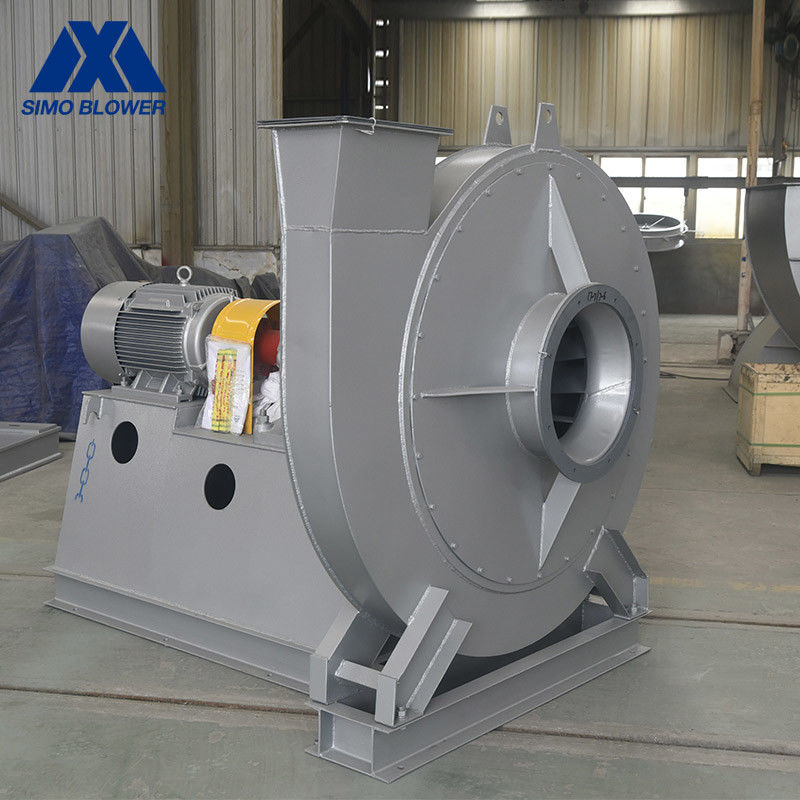

Large Capacity Backward 16Mn Kilns Cooling Flue Gas Centrifugal Fan
Introduction
The 9-10 series centrifugal fan can output high gas pressure, suitable for conveying normal or high temperature clean gas/combustible gas/corrosive gas/mixed with a few impurities, light particles/debris/short fiber materials.
The most commonly used for forced ventilation, rapid drying, rapid cooling and heat dissipation, cement production line chiller cooling, clinker cooler, circulating fluidized bed system, air purification and industrial waste gas treatment, flue gas desulfurization industrial boilers or incinerators forced draft/ induced draft/ primary/ secondary air, ventilation of large mill system, industrial waste heat recovery device, blasting of smelting furnace and casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, Pressurization or decompression sealing of industrial equipment.
The fan with explosion-proof motor, and its performance parameters are the same as those ordinary motors.
The fan has high efficiency, low noise, flat performance curve and wide area of high efficiency.
Product Features
1. The parts are closely matched and have good sealing performance to ensure the output pressure will not be reduced.
2. The impeller is calibrated by high standards for dynamic balance to ensure stable operation of the fan.
3. Running test and vibration value detection after the production is completed, the fan operation is reliable.
4. There are a variety of part options to choose from.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-10 | 8D | 1450～2900 | 3231～15034 | 3297～14287 | 7.5～110 |
| 9D | 1450 | 4101～4597 | 4695～10717 | 15～22 | |
| 10D | 1450 | 4958～5840 | 6440～15455 | 30～37 | |
| 11.2D | 960～1450 | 2705～7364 | 5990～21713 | 15～75 | |
| 12.5D | 960～1450 | 3975～9229 | 8327～30186 | 22～110 | |
| 14D | 960～1450 | 4249～11668 | 11699～42409 | 37～220 | |
| 16D | 960～1450 | 5575～15425 | 17463～63305 | 75～315 |
FAQ
1.Q: What’s the MOQ of your company ?
A: The MOQ is 1set.
2.Q: How long is the delivery time ?
A:5-35 days.
3.Q : What’s your payment terms ?
A : T/T, L/C, or Negotiable.
4.Q: What’s your warranty ?
A: 1 year.
5.Q: Is your company factory or trade company ?
A: We have our own factory, our type is factory +trade.
