| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | Drivetrain: | Direct/Coupling Driven/V-belt Driven |
|---|---|---|---|
| Bearing: | SKF/FAG/By Your Demand | Power Source: | Three Phase AC Motor |
| Motor: | SIEMENS/ABB/By Your Demand | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
| High Light: | Materials Drying Flue Gas Blower Fan,15425pa Flue Gas Blower Fan,15425pa backward flue gas blower |
||

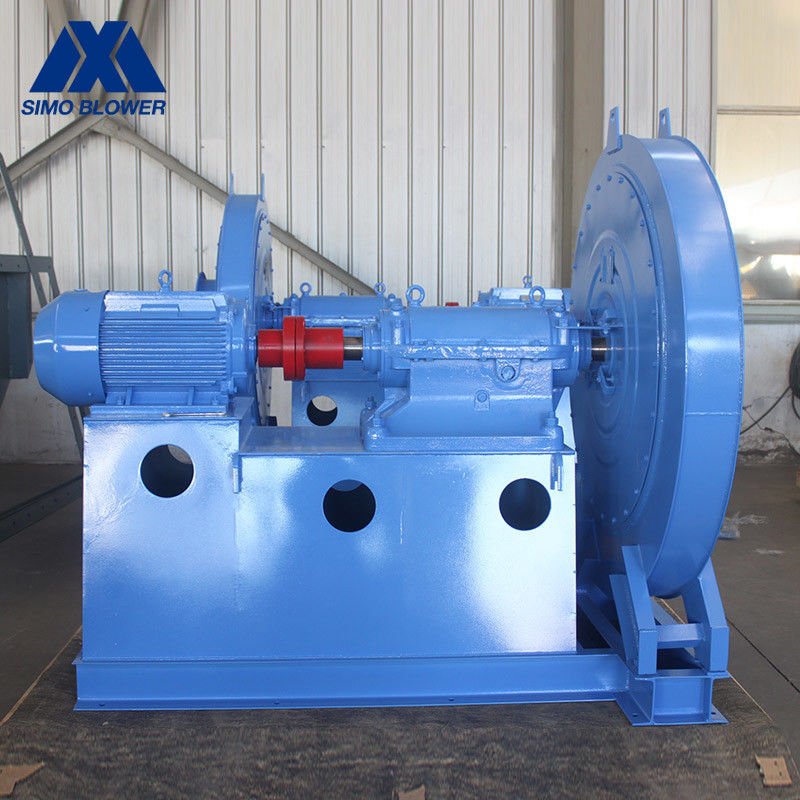

Alloy Steel High Pressure Materials Drying Flue Gas Blower Fan
Introduction
The 9-10 series centrifugal fan can output high gas pressure, suitable for conveying normal or high temperature clean gas/combustible gas/corrosive gas/mixed with a few impurities, light particles/debris/short fiber materials.
The most commonly used for forced ventilation, rapid drying, rapid cooling and heat dissipation, cement production line chiller cooling, clinker cooler, circulating fluidized bed system, air purification and industrial waste gas treatment, flue gas desulfurization industrial boilers or incinerators forced draft/ induced draft/ primary/ secondary air, ventilation of large mill system, industrial waste heat recovery device, blasting of smelting furnace and casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, Pressurization or decompression sealing of industrial equipment.
Product Features
1. It can output very high pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.
2. In the case of using the common base , the installation is very simple and basically does not require the support of professional technicians.
3. The bearing box is reserved with the temperature and vibration sensor installation position, which can conveniently install the fan operation monitoring device.
4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
5. Customized design according to customer performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-10 | 8D | 1450～2900 | 3231～15034 | 3297～14287 | 7.5～110 |
| 9D | 1450 | 4101～4597 | 4695～10717 | 15～22 | |
| 10D | 1450 | 4958～5840 | 6440～15455 | 30～37 | |
| 11.2D | 960～1450 | 2705～7364 | 5990～21713 | 15～75 | |
| 12.5D | 960～1450 | 3975～9229 | 8327～30186 | 22～110 | |
| 14D | 960～1450 | 4249～11668 | 11699～42409 | 37～220 | |
| 16D | 960～1450 | 5575～15425 | 17463～63305 | 75～315 |
FAQ
1.Q: What’s the MOQ of your company ?
A: The MOQ is 1set.
2.Q: How long is the delivery time ?
A:5-35 days.
3.Q : What’s your payment terms ?
A : T/T, L/C, or Negotiable.
4.Q: What’s your warranty ?
A: 1 year.
5.Q: Is your company factory or trade company ?
A: We have our own factory, our type is factory +trade.
