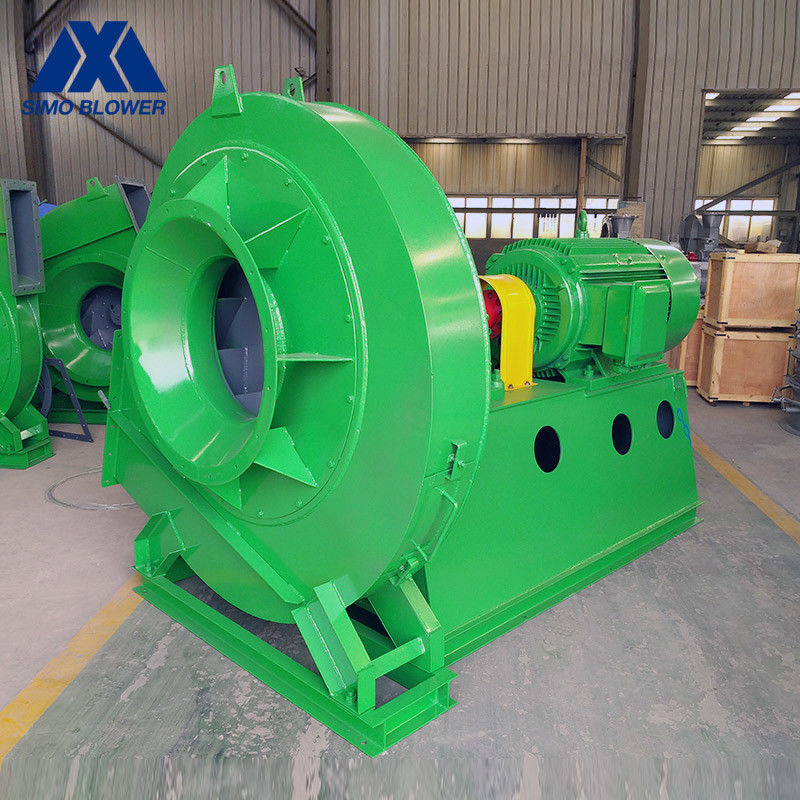

Smoke 140687Pa Cement Rotary Kiln Blower Anti Explosion Ducted Exhaust Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-11
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Mounting: Free Standing
Warranty: 1 Year Drivetrain: Direct/Coupling Driven/V-belt Driven
Bearing: SKF/FAG/By Your Demand Motor: SIEMENS/ABB/By Your Demand
High Light:

140687Pa Rotary Kiln Blower

,

Anti Explosion Rotary Kiln Blower

,

575176m3/h Ducted Exhaust Fan

Smoke Exhaust Cement Rotary Kiln Anti-Explosion Blower Duct Fan



Detail introduction



The 6-11 series have the characteristics of high efficiency, flat performance curve, wear resistance, and work stability.

It has excellent performance and can output high pressure.

It can be used to transport normal temperature or high temperature non-flammable gases, particles, powder, debris, fibrous materials etc.

The fans are commonly used in large-scale industrial systems such as large dust removal systems, industrial desulfurization and denitrification, large industrial boiler systems, large industrial rotary kilns and calcining kiln systems, and mineral powder sintering (sintering machines) and so on.



Product features



1. It can output higher outlet pressure and can work in high temperature medium, suitable for any need to transport high pressure & high temperature gas industrial occasions.

2. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

3. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.

4. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.

5. The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.

6. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.

7. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.

8. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.

9. Test assembly after production is completed to ensure that there is no interference between the components.

10. Provide on-site arrangement and guidance services.



Technical specifications



Series no. 6-11 series Feature selection
Normal anti-corrosion wear-resisting High temperature anti-explosion Remarks
Performance Impeller diameter 1500-3600mm
Rotation speed ≤4000rpm
Pressure range 2304-140687Pa
Flow range 52395-575176㎥/h
Structure Blade type Backward, Straight, Aerofoil type
Impeller support SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
Lubrication method Oil bath lubrication, grease lubrication, lubrication oil station Can be specified
Cooling method Air cooling, Water cooling, Oil cooling Can be specified
Driven mode Direct driven, Coupling driven, Belt driven Can be specified
Gas composition Gas temperature Normal Customer request Customer request ≥250℃ Customer request
gas characteristic Clean gas Corrosive gas Particulate dust High temperature gas Flammable gas, explosive gas
System configuration Motor brand Chinese famous brand, ABB, Siemens, WEG etc Can be specified
Impeller High quality carbon steel FRP, Stainless steel, Rubber Lining Wear-resistant layer or wear-resistant liner, ceramic patch High temperature high quality alloy steel FRP, Aluminum alloy Can be specified
Air inlet cone High quality carbon steel FRP, Stainless steel, Rubber Lining High quality carbon steel High quality carbon steel High quality carbon steel Can be specified
Casing High quality carbon steel FRP, Stainless steel, Rubber Lining High quality carbon steel High quality carbon steel High quality carbon steel Can be specified
Air damper High quality carbon steel FRP, Stainless steel, Rubber Lining High quality carbon steel High quality carbon steel High quality carbon steel Can be specified
Main shaft High strength carbon steel, Alloy structural steel Can be specified
Bearing ZWZ, SKF, FAG, NSK Can be specified
Bearing housing Cast iron
Foundation bolts GB799-1988
Option parts System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
