Single Inlet 1120r/min Ventilation Boiler Fan HG785 Alloyed Steel Low Pressure

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Material: Carbon Steel/Alloy Steel/Stainless Steel Lubrication: Oil Bath Lubrication
Bearing Cooling: Air Cooling Or Circulating Water Cooling Motor: SIEMENS/ABB/By Your Demand
Power Source: Three Phase AC Motor Impeller Test: Ultrasonic Flaw Detection
High Light:

1120r/min Ventilation Boiler Fan

,

HG785 Ventilation Boiler Fan

,

2734pa single inlet centrifugal fan

Single Inlet HG785 Alloyed Steel Low Pressure Ventilation Boiler Fan



Application



Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.



 Product Features

Introduction Of Centrifugal Fan



When the fan is working, the airflow enters the blade space from the fan axially, and then rotates with the impeller under the drive of the impeller; on the other hand, it increases energy under the action of inertia, leaves the impeller along the radius, and does work by the centrifugal force generated. The fan is called a centrifugal fan.



The main components of the centrifugal fan are: impeller, casing, coupling and shaft. The impeller is the main work component that generates wind pressure and transfers energy; the casing is mainly used to introduce gas and exhaust gas, and at the same time convert part of the kinetic energy of the gas into pressure energy; the coupling is used to connect the motor and the fan to transmit torque;the shaft is installed with the motor through a coupling and the impeller is fixed.



The centrifugal fan is mainly composed of an impeller and a casing. The impeller of the small fan is directly mounted on the motor, and the large fan is connected with the motor through a coupling or a pulley.



Centrifugal fans generally use single-side air intake and use single-stage impellers; those with large flow can be air-intaken on both sides and use two back-to-back impellers, which are also called double-suction centrifugal fans.



The principle of gas discharge: When the gas between the blades of the centrifugal fan rotates, the kinetic energy obtained by the centrifugal force is discharged from the periphery of the impeller, guided by the volute-shaped casing, so that it flows to the outlet of the ventilator, thereby being in the center of the impeller. Negative pressure is formed in the part, so that the external airflow continuously flows in and supplements, so that the fan can discharge the gas.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-09C 6C 800 ~ 2240 220 ~ 2734 368420628 1.1 ~ 15
8C 630 ~ 1800 280 ~ 3143 687636427 2.2 ~ 37
10C 500 ~ 1250 299 ~ 2373 1394548797 3 ~ 37
12C 400 ~ 1120 275 ~ 2746 1927875552 3 ~ 75


FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

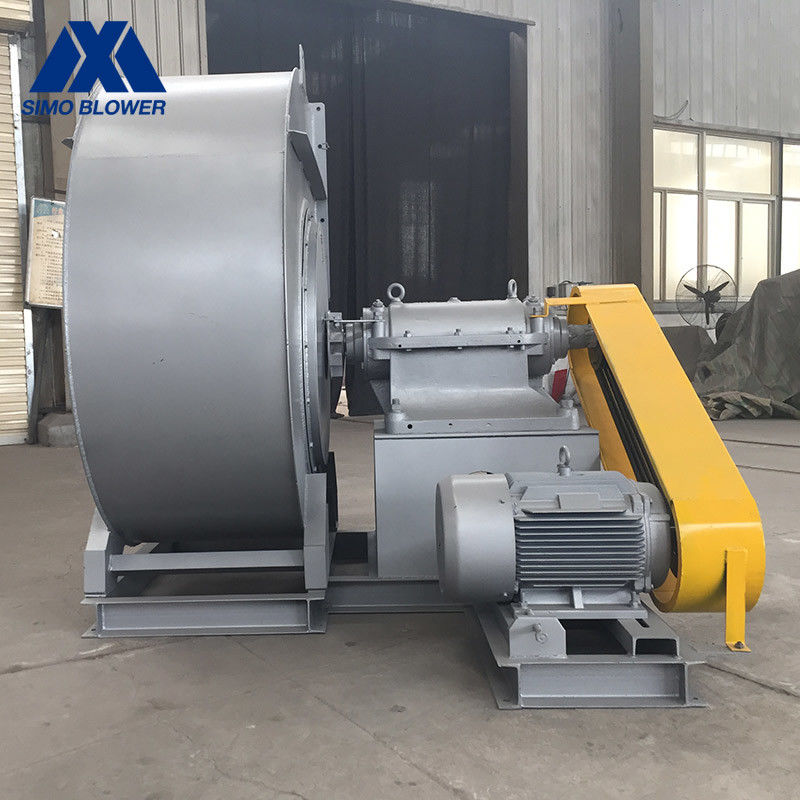

Single Inlet 1120r/min Ventilation Boiler Fan HG785 Alloyed Steel Low Pressure 0

Single Inlet 1120r/min Ventilation Boiler Fan HG785 Alloyed Steel Low Pressure 1

Single Inlet 1120r/min Ventilation Boiler Fan HG785 Alloyed Steel Low Pressure 2
