| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-03 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | Drivetrain: | Direct/Coupling Driven/V-belt Driven |
|---|---|---|---|
| Bearing: | SKF/FAG/By Your Demand | Bearing Cooling: | Air Cooling Or Circulating Water Cooling |
| Main Shaft: | High-strength Carbon Structural Steel | ||
| High Light: | 16Mn Cement Fan,Single Suction Cement Fan,16Mn air suction fan |
||

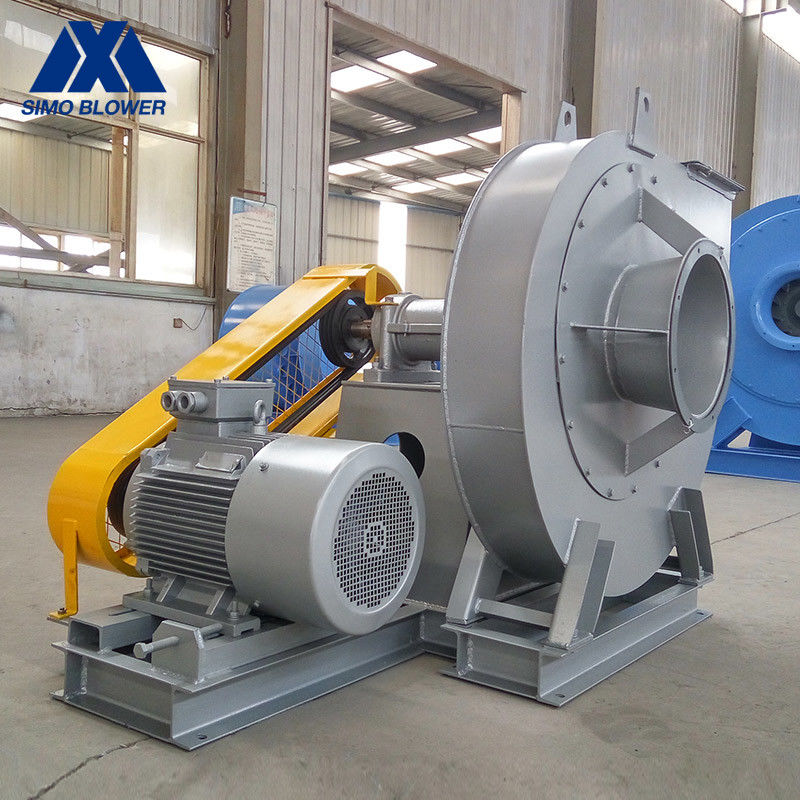

Single Suction 16Mn V-Belt Driven Corrosion Resistant Cement Fan
Detail introduction :
1. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.
2. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.
3. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
Product features :
1. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
2. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.
3. Test assembly after production is completed to ensure that there is no interference between the components.
4. Provide on-site arrangement and guidance services.
Technical specifications:
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-03 | 6C | 1800～2400 | 1785～4325 | 2403～6830 | 4～11 |
| 7C | 1500～2020 | 187～4178 | 3180～9129 | 5.5～15 | |
| 9C | 1645～1800 | 3354～5482 | 7420～17300 | 22～37 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
