Electrolytic Aluminum Gas Purification 8971m3/H Boiler Blower Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-05
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Material: Carbon Steel/Alloy Steel/Stainless Steel Motor Type: Three Phase AC Motor
System Type: Single Inlet, Overhang Type After-sales Service Provided: Field Installation, Commissioning And Training
Drivetrain: Direct/Coupling Driven/V-belt Driven Delivery Time: 30 Days
High Light:

8971m3/H Boiler Blower Fan

,

Gas Purification Boiler Blower Fan

,

8971m3/H induced draft fan

Vertical Installation Electrolytic Aluminum Gas Purification Blower Fan



Introduction



    At present, there are many series of boilers, and the situation of burning coal quality is quite different, after installing dust removal equipment and waste heat utilization equipment, insufficient pumping force affects normal operation.



    In order to overcome the insufficient pumping force due to the above reasons, the furnace has a positive pressure, which affects the combustion and normal operation of the boiler.



    Therefore, various types of boiler induced draft fans have been designed and manufactured for the design and manufacture of air volume, wind pressure and boiler matching efficiency. Provide each user to choose an application.



    Induced draft fan, high-quality large flow centrifugal fan, fan with more complete models, Choose SIMO Blower with more reasonable price!



Product features



1.The fan pressure is high, therefore it is especially suitable for 1-20t/h industrial boilers, which equipped with spiral pipes and multi-tube dust collector.



2.The induced draft fan is made into a single suction, different impeller diameter from 400mm to 3000mm.



3.The position of the air outlet of the fan is expressed by the angle of the air outlet of the casing."Left" and "Right" can be made into different angles.



4.Fan drive mode is V-belt drive, coupling drive, double support type.



5.The fan has high efficiency, high total pressure, low noise, flat performance curve, wide economical use area, and adopts backward plate type blades. The efficiency of the fan at the best working point is 86.5%, and the noise index( than A sound Level) is Ls=11.5dB.



6.A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.



7.Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.

8.Centrifugal fans are widely used in boilers and industrial furnaces. They mainly play the role of ventilation and air induction. On the one hand, they ensure the environment of the boiler room or industrial kiln. On the other hand, they allow the replacement of oxygen-enriched air, which makes the firepower of the boiler or kiln more fierce and saves coal to a certain extent. Wait for power resources to reduce enterprise production costs.



Technical data



series model

Blower Fan

Rotation Speed
(r/min)

Blower Fan

Total Pressure
(Pa)

Blower Fan

Air Capacity
(m³/h)

Blower Fan

Power
(kW)

7-07 5D 3030 2982 ~ 3456 4486 ~ 8971 11 ~ 15
5.6D 2360 2623~2264 4909~9817 11
7.1D 1830 ~ 2450 2188 ~ 3862 7757~20771 15 ~ 30
8D 1910 3517~3034 11582~23164 30
9D 1570 3002~2591 13555~27111 30
10D 1470 ~ 1650 2806 ~ 4109 17410 ~ 36478 45 ~ 55



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

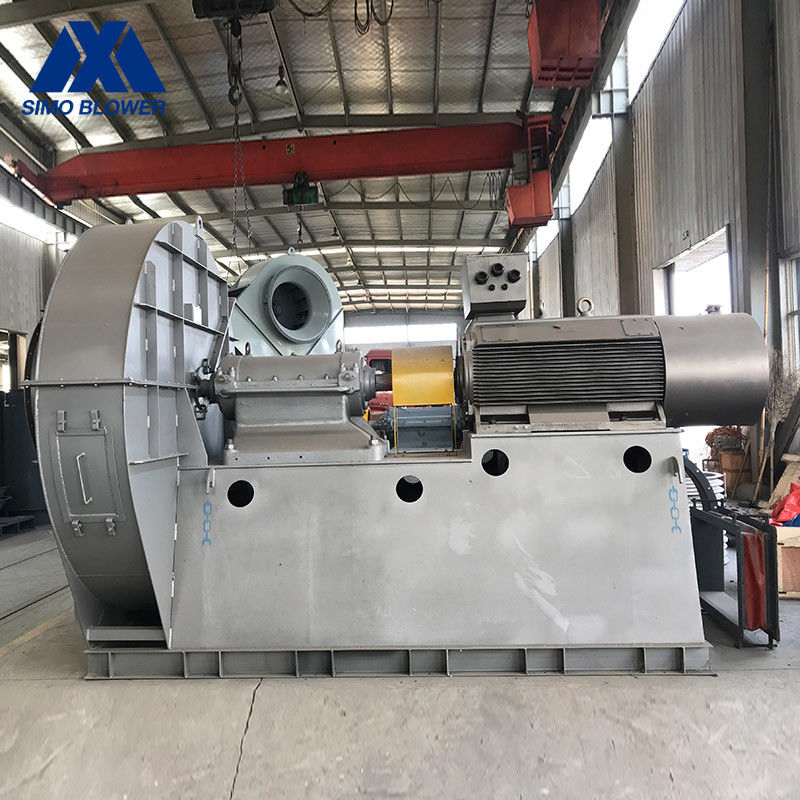

Electrolytic Aluminum Gas Purification 8971m3/H Boiler Blower Fan 0

Electrolytic Aluminum Gas Purification 8971m3/H Boiler Blower Fan 1

Electrolytic Aluminum Gas Purification 8971m3/H Boiler Blower Fan 2
