| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 5-11 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | Drivetrain: | Direct/Coupling Driven/V-belt Driven |
|---|---|---|---|
| Bearing: | SKF/FAG/By Your Demand | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Main Shaft: | High-strength Carbon Structural Steel | Bearing Cooling: | Air Cooling Or Circulating Water Cooling |
| High Light: | 16760m3/H Cement Fan,Backward Cement Fan,16760m3/H centrifugal air blower |
||

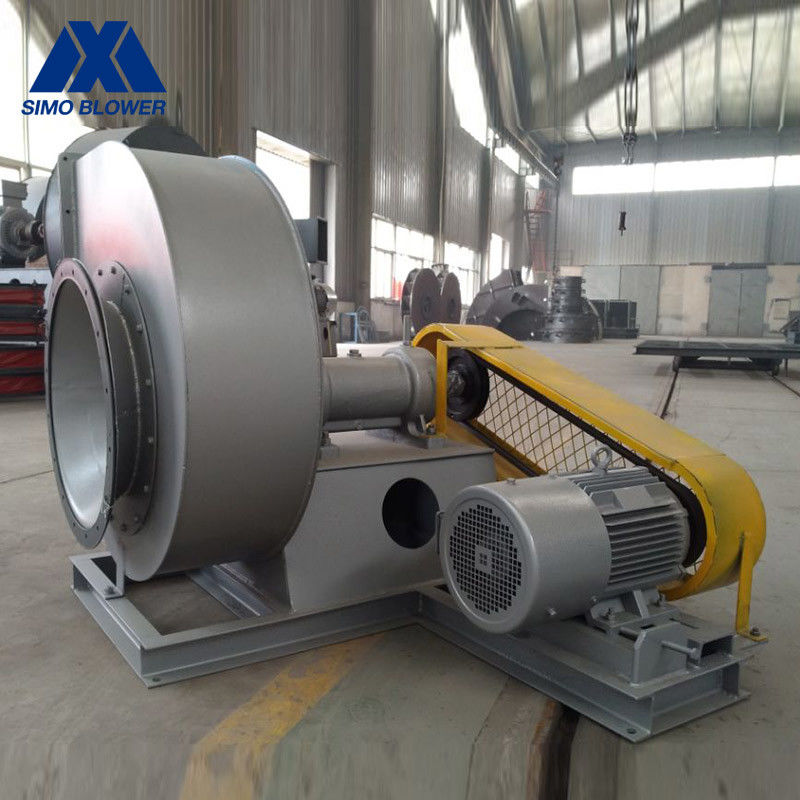

Aluminium Alloyed V-Belt Driven Materials Drying Backward Cement Fan
Detail introduction :
This can use different speeds to meet the requirements of various dust collectors in the same tonnage boiler, combined redundant fan series and machine number.
It is used to transport various common gases and hard materials in industrial production, and is suitable for various harsh conditions such as high temperature, wear and corrosion.
It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
The adjustment door can be used to flexibly adjust the pressure and flow of the fan during operation. It can also be equipped with a variable frequency motor to adjust the pressure and flow of the fan by changing the speed.
Product features :
1. For the materials of impeller and main shaft, for different working conditions and working speed, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel, make the impeller and main shaft to maintain reliable strength at high temperatures.
2. For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
3. The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.
4. The weld and the main shaft of the impeller are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
5. After the production is completed, all products are tested for running and vibration values for reliable operation.
6. There are a variety of accessories to choose from.
Technical specifications:
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 5-11 | 4C | 2900 | 990～1873 | 2750～5750 | 3～4 |
| 5C | 2620～2900 | 1265～2265 | 4840～9870 | 5.5～7.5 | |
| 6C | 2620～2850 | 1824～3148 | 8370～16760 | 15～18.5 | |
| 8C | 1820～1980 | 1726～2991 | 13780～27600 | 22～30 | |
| 9C | 1740～1820 | 2000～3197 | 18780～36140 | 37 | |
| 12C | 1450 | 3609～2471 | 37100～68250 | 75 | |
| 12.4C | 1450 | 3903～2638 | 40940～75330 | 90 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
