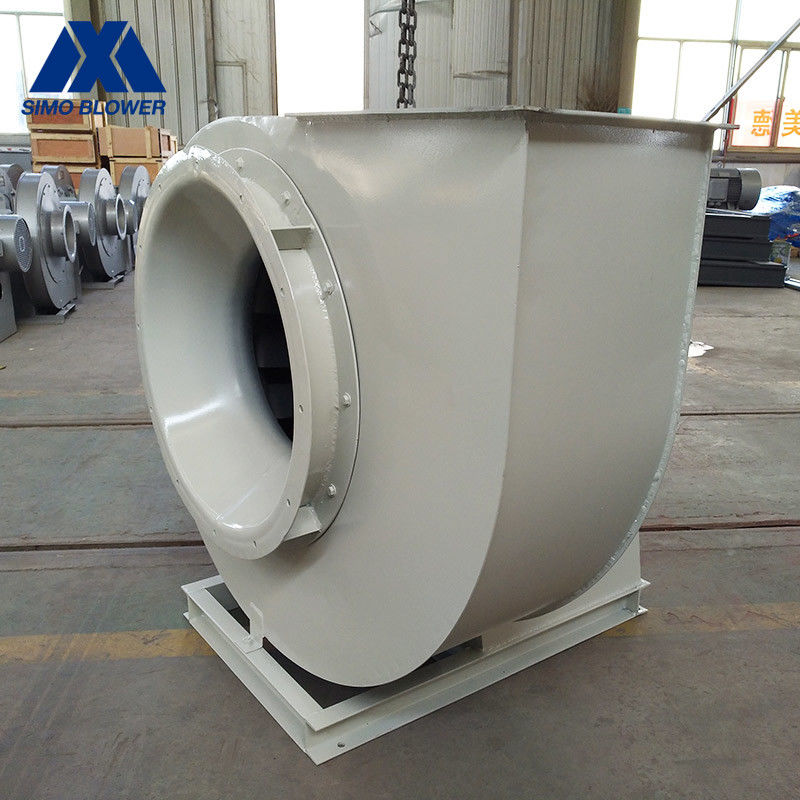

Low Pressure Coupling Driving Anti Fraying Boiler Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-14
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Main Shaft: High-strength Carbon Structural Steel Voltage: 380V/415V/440V/660V/6KV/10KV
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Motor: SIEMENS/ABB/By Your Demand
High Light:

Anti Fraying Boiler Fan

,

6KV boiler fan

Low Pressure Coupling Driving Antifraying Industrial Boiler SA Centrifugal Fan

Introduction



The 4-14 series centrifugal fan is suitable for indoor ventilation in general factories and large buildings.

It can be used to input gas as well as to output gas.

The gas delivered by the 4-14 series fan should be no more than 80 °C air and other gases that are not self-igniting and are not harmful to the human body and are not corrosive to steel materials. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-14 8C 1450 21771481 1698530134 18.5
9C 960 ~ 1450 824 ~ 2756 1601142906 11 ~ 30
10C 730 ~ 1450 588 ~ 3403 16701 58856 7.5 ~ 55
11.2C 730 ~ 1450 736 ~ 4276 23464 82688 11 ~ 90
12.5C 730 ~ 1450 912 ~ 5325 32619 114952 22 ~ 160
14C 730 ~ 1450 1147 ~ 6678 45827161499 37 ~ 315
16C 580 ~ 960 951 ~ 3825 54351159606 45 ~ 160


FAQ



1,Q: What’s the MOQ of your company?

  A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :        A:5-35 days.

3,Q : What’s your payment terms?

     A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
     A: 1 year.
5,Q: Is your company factory or trade company?

     A: We have our own factory, our type is factory +trade.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.



Low Pressure Coupling Driving Anti Fraying Boiler Fan 0

Low Pressure Coupling Driving Anti Fraying Boiler Fan 1
