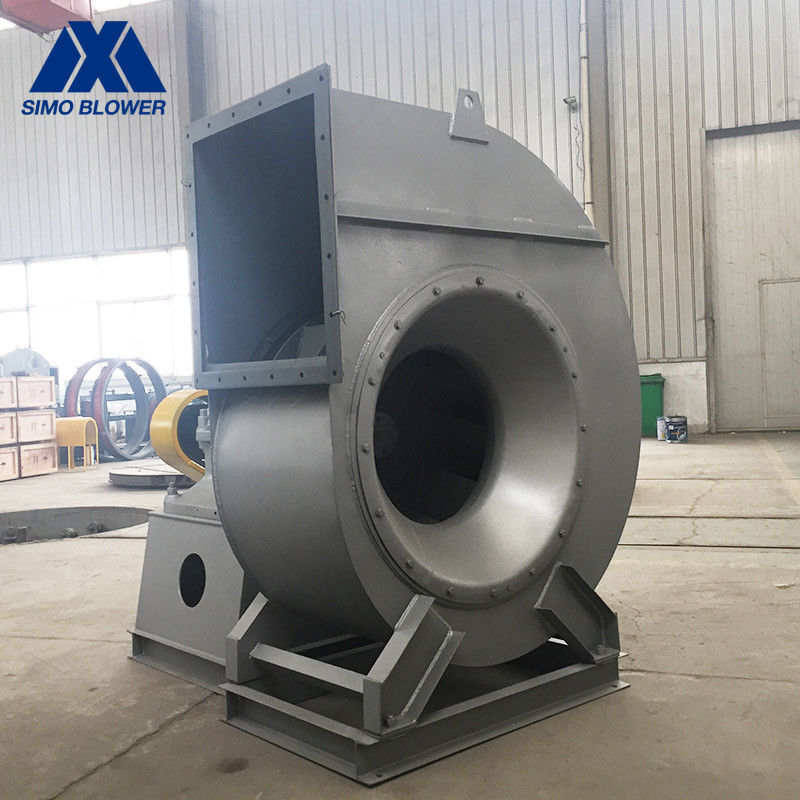

Stainless Steel V Belt Driving Coal Fired Forward Boiler Blower Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Drivetrain: Direct/Coupling Driven/V-belt Driven Voltage: 380V/415V/440V/660V/6KV/10KV
Current Type: AC Motor: SIEMENS/ABB/By Your Demand
High Light:

Forward Boiler Blower Fan

,

380V Boiler Blower Fan

,

15kw Boiler Blower Fan

Stainless Steel V-Belt Driving Forward Coal-Fired Boiler Blower Fan

Introduction



1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.

2. The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.

3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. In the case of a monolithic bracket, the installation is very simple and requires little support from a professional technician.

6. After the production is completed, all products are tested for running and vibration values for reliable operation.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-09 7C 710 ~ 1800 233 ~ 2406 493924038 1.5 ~ 15
8C 630 ~ 1800 240 ~ 3150 6542 35882 1.5 ~ 37
10C 520 ~ 1300 258 ~ 2551 1093150807 3 ~ 37
12C 420 ~ 1170 242 ~ 2980 15256 ~ 79015 4 ~ 75
1040 23491493 3777870236 55


FAQ



1,Q: What’s the MOQ of your company?

  A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :        A:5-35 days.

3,Q : What’s your payment terms?

     A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
     A: 1 year.
5,Q: Is your company factory or trade company?

     A: We have our own factory, our type is factory +trade.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.



Stainless Steel V Belt Driving Coal Fired Forward Boiler Blower Fan 0

Stainless Steel V Belt Driving Coal Fired Forward Boiler Blower Fan 1
