| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 8-12 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Lubrication: | Oil Bath Lubrication |
| Motor Type: | Three Phase AC Motor | Motor: | SIEMENS/ABB/By Your Demand |
| High Light: | 11kw Cement Fan,SWSI Cement Fan,Cement Fan Blower |
||

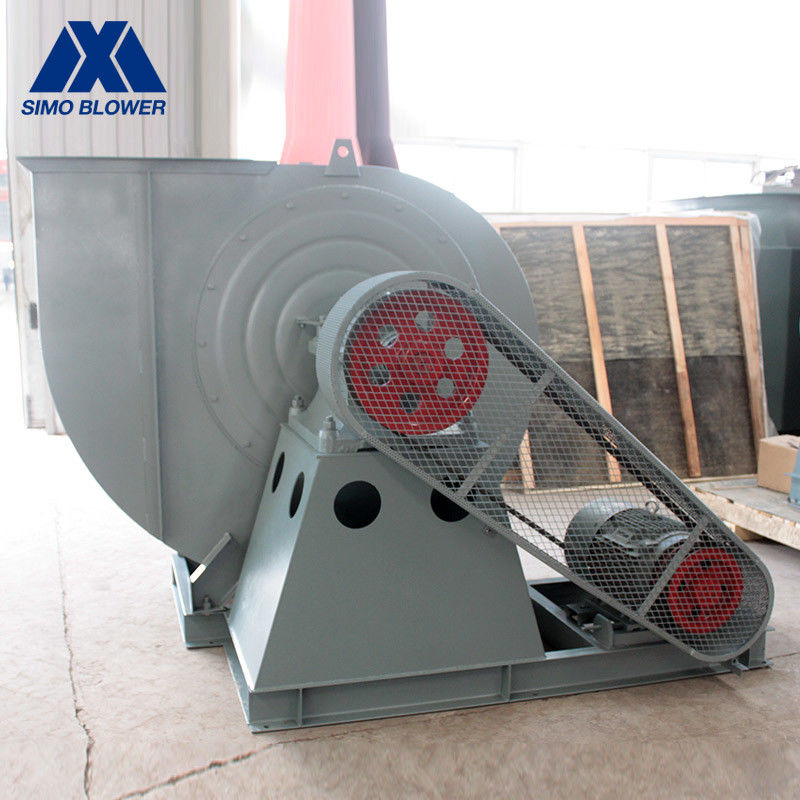

Single Inlet High Temperature Anticorrosion Smoke Exhaust Cement Fan Blower
Introduction
The 8-12 series strong cooling fan is designed to work in the high efficiency area to achieve energy saving when operating under variable operating conditions.
It is jointly designed by the fan energy-saving group of the Ministry of Machinery Industry and organized by the national fan industry.
It’s a high-performance product promoted by the State Economic Commission and the Ministry of Machinery Industry.
It has the advantages of high efficiency, low noise, wide performance and high efficiency curve.
Applicable to industrial boilers of 5 ~ 35 tons/hour, the similar intake conditions and performance can be adapted, but the maximum temperature should not exceed 250 °C.
The dust removal device with a dust removal efficiency of not less than 85% must be installed before the induced draft fan, in order to reduce the dust content of the flue gas entering the fan, which not only reduces the pollution of the flue gas to the environment, but also reduces the wear of the dust on the fan. It’s conducive to extending the life of the fan.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
| 8-12 | 4.5C | 2900 | 2540～2226 | 7199～9781 | 11 |
| 5C | 2900 | 2746～3050 | 6339～13417 | 15～18.5 | |
| 5.C | 2900 | 3442～3933 | 8897～18849 | 22～30 | |
| 6.3C | 1450 | 1089～1245 | 6334～13419 | 5.5～7.5 | |
| 7.1C | 1450 | 1383～1540 | 9066～19208 | 11～15 | |
| 8C | 1450 | 1755～2001 | 12969～27477 | 18.5～22 | |
| 9C | 1450 | 2226～2530 | 18466～39122 | 30～45 | |
| 10C | 1450 | 2746～3128 | 25330～53666 | 55～75 |
Advantages and Features
1. It is capable of outputting higher gas pressures and providing more gas flow with lower noise.
2. In the case of common base, the installation is very simple and requires little support from a professional technician.
3. The motor shaft is elastically connected with the drive shaft, and it is not necessary to constantly tighten the belt or replace the belt, and the maintenance workload is small.
4. Fans with an impeller diameter of less than 1400 mm operate at a normal temperature fan system, eliminating the need for additional bearing cooling devices, reducing the amount of user investment and maintenance.
5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
6. It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.
7. After the production is completed, after running test and vibration value detection, the operation is reliable.
