| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 5-11 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Motor: | SIEMENS/ABB/By Your Demand | Feature: | High Performance |
|---|---|---|---|
| Noise: | Optional | Lubrication: | Oil Bath Lubrication |
| Color: | Customer's Requirement | ||
| High Light: | Anti Explosion Cement Blower,Air Purification Cement Blower,Centrifugal Cement Blower |
||

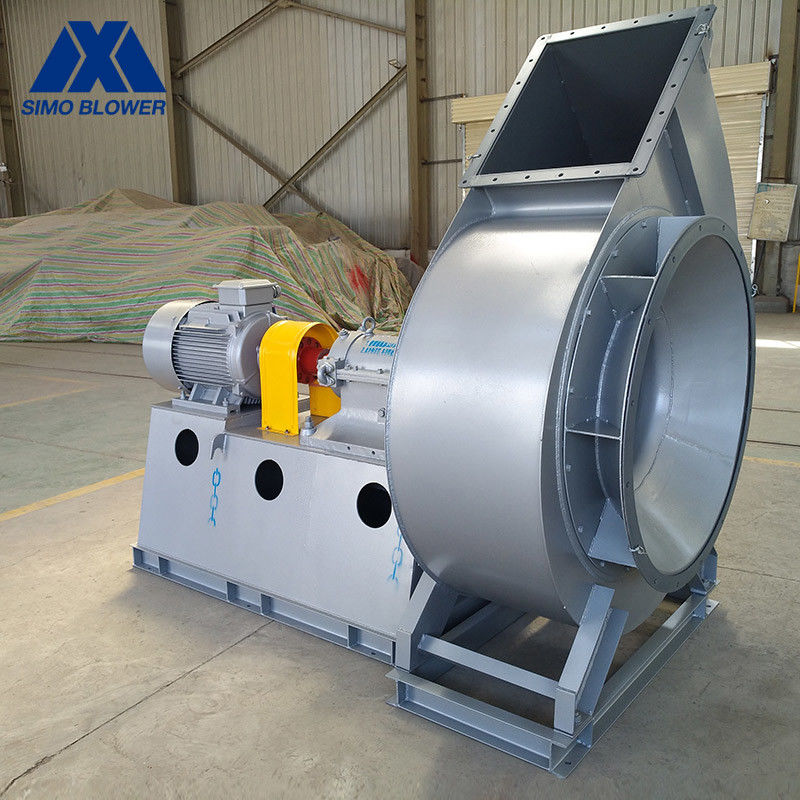

Stainless Steel Large Capacity Anti-Explosion Air Purification Cement Blower Fan
Introduction
This type of fan is currently used in the boiler industry. The air volume of the induced draft fan and the difference in wind pressure are relatively large, in order to adapt to the above situation, considering the practicability of the fan, in addition to the 20-ton boiler ID fan need large power coupling direct transmission, the other uses the triangular belt type transmission.
This can use different speeds to meet the requirements of various dust collectors in the same tonnage boiler, combined redundant fan series and machine number.
It is used to transport various common gases and hard materials in industrial production, and is suitable for various harsh conditions such as high temperature, wear and corrosion.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
| 5-11 | 16D | 1450 | 6622～9074 | 30774～61548 | 132～220 |
| 17D | 1450 | 7475～10242 | 36912～73825 | 220～250 | |
| 18D | 960～1450 | 3679～11488 | 29010～87634 | 75～315 | |
| 19D | 960～1450 | 4091～12802 | 34119～103066 | 90～400 | |
| 20D | 960～1450 | 4542～14175 | 37794～120212 | 132～560 | |
| 20.5D | 960～1450 | 4768～14901 | 55098～129455 | 132～630 | |
| 21D | 960～1450 | 5003～15637 | 46067～1093640 | 160～710 |
Advantages and Features
1. It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
2. The adjustment door can be used to flexibly adjust the pressure and flow of the fan during operation. It can also be equipped with a variable frequency motor to adjust the pressure and flow of the fan by changing the speed.
3. The bearing cooling method selects a low-cost water-cooling method or an oil-cooling method with better heat dissipation depending on the gas temperature and the conditions of the use environment. For extremely high temperature operating conditions, an electronic cooler can also be added to absolutely protect the reliable operation of the fan system.
4. For the materials of impeller and main shaft, for different working conditions and working speed, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel, make the impeller and main shaft to maintain reliable strength at high temperatures.
