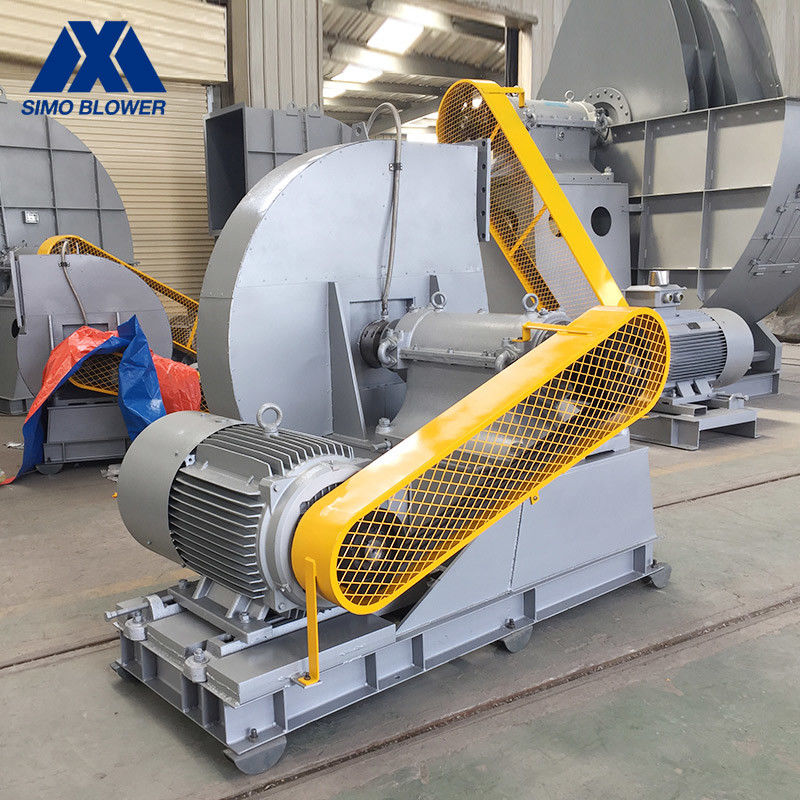

16Mn V-Belt Driven Backward ABB Boiler Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-03
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Motor: SIEMENS/ABB/By Your Demand
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Bearing Cooling: Air Cooling Or Circulating Water Cooling
Power Source: Three Phase AC Motor Impeller: Dynamic Balanced
High Light:

abb exhaust blowers industrial

,

centrifugal exhaust fan blower

16Mn V-Belt Driven Backward Explosionproof Industrial Boiler Exhaust Blower Fan

Introduction



9-03 series fan-type iron furnace special high-pressure centrifugal fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron furnace blast performance requirements.

The fan can also be used as the blast for various furnace forging furnaces.

It is also suitable for conveying air and non-corrosive, non-self-igniting, non-viscous materials or light powder/debris/short fiber materials.

It is suitable for forced ventilation, forced cooling, blasting of smelting furnaces and foundry furnaces, pressurization or decompression sealing of industrial equipment.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-03 8D 2950 1668017631 30198117 3755
9D 2950 2134822314 432611632 75110


FAQ



1,Q: What’s the MOQ of your company?

  A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :        A:5-35 days.

3,Q : What’s your payment terms?

     A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
     A: 1 year.
5,Q: Is your company factory or trade company?

     A: We have our own factory, our type is factory +trade.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.





16Mn V-Belt Driven Backward ABB Boiler Fan 0

16Mn V-Belt Driven Backward ABB Boiler Fan 1

16Mn V-Belt Driven Backward ABB Boiler Fan 2
