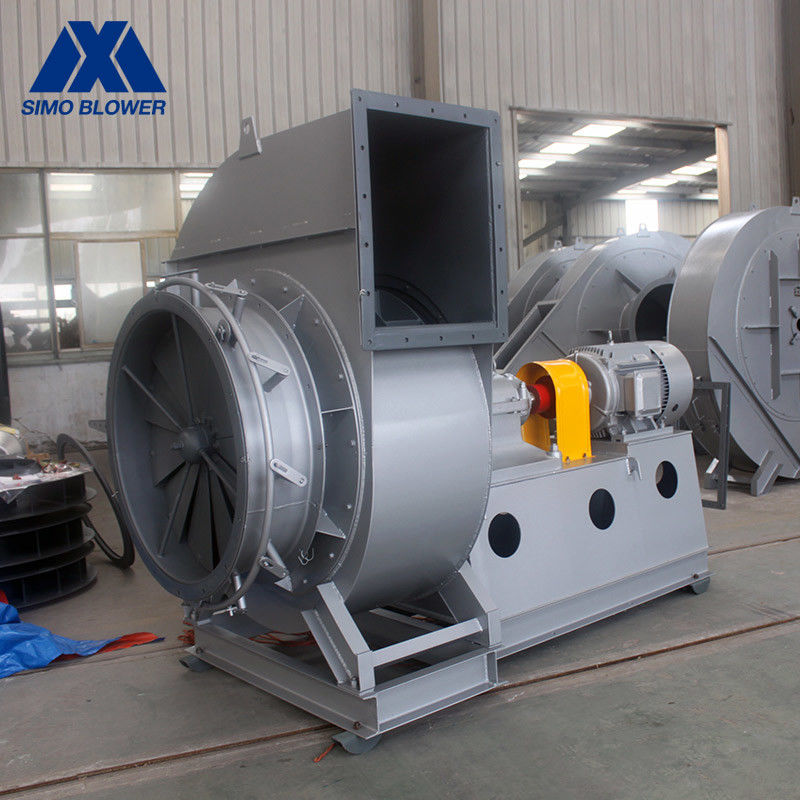

Q235 Antiwear Heat Dissipation 22kw Boiler Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-06
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Blade: Forward / Backward/Backward Curved
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung After-sales Service Provided: Field Installation, Commissioning And Training
Impeller Test: Ultrasonic Flaw Detection Impeller: Dynamic Balanced
High Light:

22kw industrial ventilation fan

,

22kw industrial exhaust fan

Q235 Energy Efficiency Antiwear Heat Dissipation Boiler Blower Fan

Introduction



The 6-06.51 series boiler fan is mainly used for the fan system of the 2t/h~670t/h steam boiler of the thermal power plant, and also meets the requirements of the performance parameters of the high pressure head of the fluidized bed furnace.

This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The medium transported by the forced draft fan is air, and the medium transported by the induced draft fan is flue gas or a gas containing impurity particles.

It can be used for more than four years when the concentration of impurities is less than 200 mg/m3.If it contains large impurities, it also can be used, but the service life is relatively shortened.

The maximum temperature used for the fan does not exceed 250°C.

It has the characteristics of high efficiency and low noise, and this series is a range of centrifugal fans with a wide range of performance.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-06 8D 1450 18592745 1100026400 15 ~ 22
9D 1450 23533474 1570037500 30 ~ 45
10D 1450 29054289 2150051500 45 ~ 75
11D 960 ~ 1450 15415190 2270068500 22 ~ 110
12D 960 ~ 1450 18346176 2460089000 37 ~ 160
13D 960 ~ 1450 21527248 31200113000 55 ~ 250
14D 960 ~ 1450 24968406 39000141000 75 ~ 400
15D 730 ~ 1450 16579650 36600172000 45 ~ 500
16D 730 ~ 1450 188510980 44300211000 75 ~ 710
17D 730 ~ 960 21285433 53200168000 90 ~ 280
18D 730 ~ 960 23866091 63100199000 110 ~ 355
19D 730 ~ 960 26586787 74200234000 160 ~ 500
20D 730 ~ 960 29467520 86700273000 200 ~ 630
21D 580 ~ 960 20508290 79500316000 200 ~ 800
22D 580 ~ 960 22509099 92200363000 220 ~ 1000
23.5D 580 ~ 960 256710380 112000443000 220 ~ 1400
25D 580 ~ 730 67946464 134000406000 355 ~ 800
26.5D 480 ~ 730 22367633 132000483000 220 ~ 1120
28D 480 ~ 730 24968522 156000569000 315 ~ 1400
29.5D 480 ~ 730 2771 ~ 9460 183000667000 400 ~ 2000


FAQ



1,Q: What’s the MOQ of your company?

  A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :        A:5-35 days.

3,Q : What’s your payment terms?

     A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
     A: 1 year.
5,Q: Is your company factory or trade company?

     A: We have our own factory, our type is factory +trade.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.



Q235 Antiwear Heat Dissipation 22kw Boiler Fan 0Q235 Antiwear Heat Dissipation 22kw Boiler Fan 1Q235 Antiwear Heat Dissipation 22kw Boiler Fan 2Q235 Antiwear Heat Dissipation 22kw Boiler Fan 3Q235 Antiwear Heat Dissipation 22kw Boiler Fan 4
