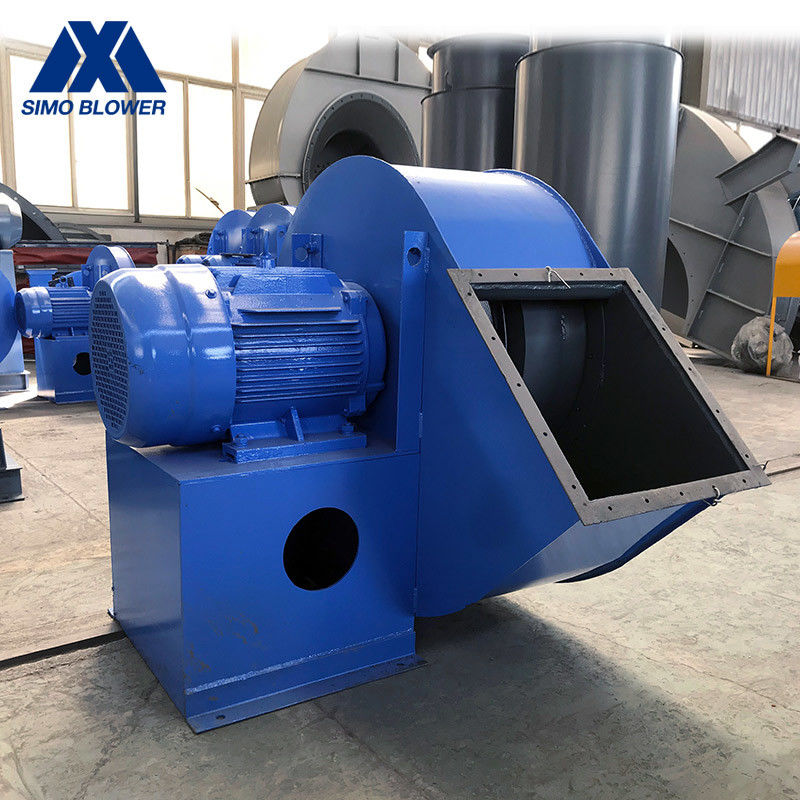

Single Inlet Low Pressure AC Motor Fluidized Bed Industrial Centrifugal Fans

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Voltage: 380V/415V/440V/660V/6KV/10KV
Mounting: Free Standing Noise: Optional
Warranty: 1 Year
High Light:

Single Inlet industrial centrifugal fans

,

Low Pressure industrial centrifugal fans

Single Inlet Low Pressure AC Motor Fluidized Bed Boiler Centrifugal Fan

Introduction



The 4-09 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan.

Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.

No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-09 2.8A 2900 994606 11312356 1.5
3.2A 1450 ~ 2900 198 ~1300 844 3517 1.1 ~ 2.2
3.6A 1450 ~ 2900 247 ~ 1578 1332 5268 1.1 ~ 3
4A 1450 ~ 2900 329 ~ 2014 2006 7419 1.1 ~ 5.5
4.5A 1450 ~ 2900 416 ~ 2554 2856 10562 1.1 ~ 7.5
5A 1450 ~ 2900 502 ~ 3187 3864 15456 2.2 ~ 15
6A 960 ~ 1450 317 ~ 1139 4420 13353 1.5 ~ 4


FAQ



1,Q: What’s the MOQ of your company?

  A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :        A:5-35 days.

3,Q : What’s your payment terms?

     A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
     A: 1 year.
5,Q: Is your company factory or trade company?

     A: We have our own factory, our type is factory +trade.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

Single Inlet Low Pressure AC Motor Fluidized Bed Industrial Centrifugal Fans 0

Single Inlet Low Pressure AC Motor Fluidized Bed Industrial Centrifugal Fans 1
