Flue Gas Industrial Equipments Heat Dissipation Centrifugal Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Bearing Type: Rolling Bearing Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
Blade: Forward / Backward/Backward Curved Material: Carbon Steel/Alloy Steel/Stainless Steel
Drivetrain: Direct/Coupling Driven/V-belt Driven Bearing: SKF/FAG/By Your Demand
High Light:

Flue Gas Centrifugal Fan

,

Centrifugal Flue Gas Fan

Flue Gas Industrial Equipments Heat Dissipation Centrifugal Blower



Introduction



Flue Gas Industrial Equipments Heat Dissipation Centrifugal Blower, this medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.

It belongs to small flow and medium pressure series.



Technical data



PRODUCT PARAMETERS
Centrifugal Fan
Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Fan
Performance
Impeller diameter 400~3500 mm
Speed of mainshaft

≤3000

rpm
Pressure range

3215~27349

Pa
Flow range

1049~330301

m3/h
Centrifugal Fan
Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Coupling Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.



Advantages and Features



1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.

2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.

3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.

4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.

5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

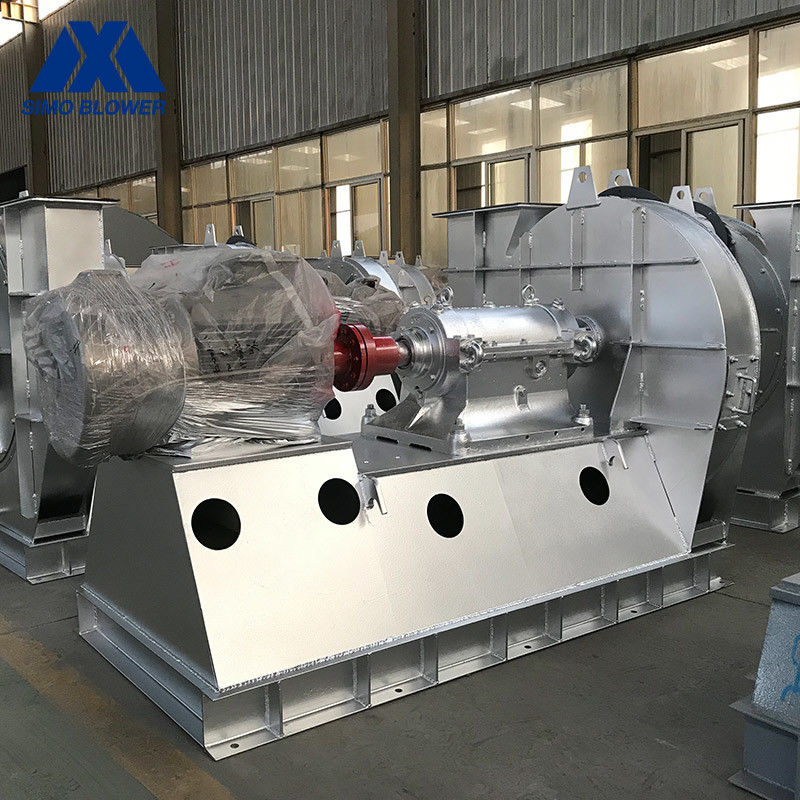

Flue Gas Industrial Equipments Heat Dissipation Centrifugal Blower 0
