Induced Draught Boiler Fan Commercial Centrifugal Fans Medium Pressure

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-05
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Type: Centrifugal Fan Mounting: Free Standing
Blade: Backward Impeller Test: Ultrasonic Flaw Detection
Main Shaft: High-strength Carbon Structural Steel Warranty: 1 Year
High Light:

low noise centrifugal fan

,

commercial centrifugal fans

Industrial Boiler Induced Draught Medium Pressure Centrifugal Fan



Introduction



The 6-05 medium-pressure series fan can meet the performance requirements of large flow and high pressure at the same time, and has the characteristics of high efficiency and low noise. It is a series centrifugal fan products with a wide range of performance.

The designed max full pressure efficiency is higher than 80% new series boiler ventilation fans and induced draft fans with the low noise.

It can be selected if the intake conditions are equivalent and the performance is suitable.

Industrial Boiler Induced Draught Medium Pressure Centrifugal Fan can be used to transport normal temperature or high temperature clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials, fiber materials, etc.



Technical data



PRODUCT PARAMETERS
Centrifugal Fan
Application
Temperature Normal temperature air, Hot air

Air composition

Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Fan
Performance
Impeller diameter 400~2000

mm

Speed of mainshaft

≤3000

rpm
Pressure range 954~28000 Pa
Flow range

1090~230000

m3/h
Centrifugal Fan
Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain V-Belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller

Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange,  Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.





Advantages and Features



Choose the right fan type, reasonable operating condition fan parameters, preferred flow pattern ,reasonably organize the gas source, carefully designed leaf type, increase wind tongue clearance, properly reduce the fan speed, improvement volute design, design principles for purifying the flow and minimizing secondary flow losses and so on. Combined with the finite difference method numerical calculation machine air inlet and impeller wheel cover type line, and the uniformity of the flow field at the fan impeller inlet is used as the optimization criterion to optimize the air inlet. The above method is combined with the original fan impeller, volute and other optimization design methods to integrate the optimal design procedure of the impeller, the volute and the air inlet, the lower specific noise level and the smaller fan size.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

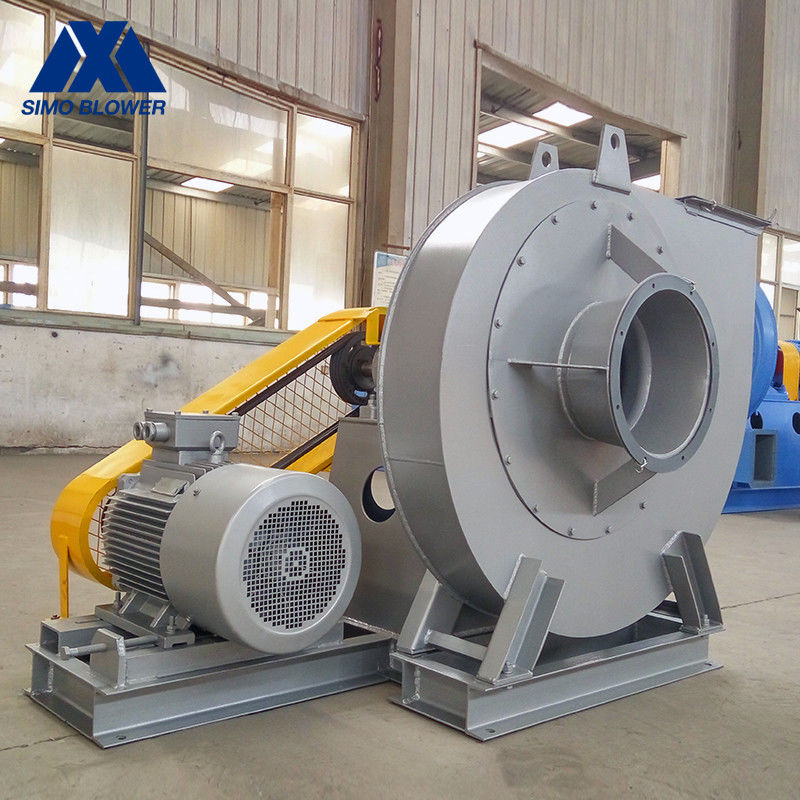

Induced Draught Boiler Fan Commercial Centrifugal Fans Medium Pressure 0
