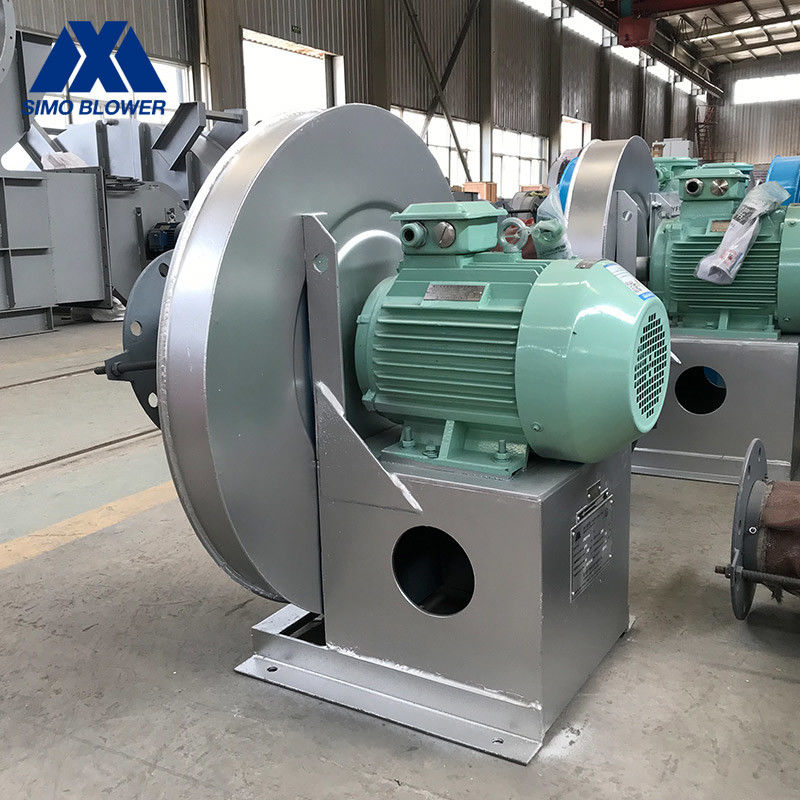

Wear Resistance Flue Gas Fan High Temperature Blower Free Standing

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-09
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
After-sales Service Provided: Field Installation, Commissioning And Training Mounting: Free Standing
Noise: Optional Color: Customer's Requirement
High Light:

direct driven centrifugal fan

,

single inlet centrifugal fan

Wear Resistance High Temperature Flue Gas Centrifugal Blower Fan



Introduction



The Wear Resistance High Temperature Flue Gas Centrifugal Blower Fan is mainly used for the fan system of the 2t/h~670t/h steam boiler of the thermal power plant, and also meets the requirements of the performance parameters of the high pressure head of the fluidized bed furnace.

This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The medium transported by the forced draft fan is air, and the medium transported by the induced draft fan is flue gas or a gas containing impurity particles.

The Wear Resistance High Temperature Flue Gas Centrifugal Blower Fan can be used for more than four years when the concentration of impurities is less than 200 mg/m3.If it contains large impurities, it also can be used, but the service life is relatively shortened.

The maximum temperature used for the fan does not exceed 250°C.

The Wear Resistance High Temperature Flue Gas Centrifugal Blower Fan has the characteristics of high efficiency and low noise, and this series is a range of centrifugal fans with a wide range of performance.



Technical data



series model

Centrifugal Blower Fan

Rotation Speed
(r/min)

Centrifugal Blower Fan

Total Pressure
(Pa)

Centrifugal Blower Fan

Air Capacity
(m³/h)

Power
(kW)

6-09

Centrifugal Blower Fan

6.3A 1460 18001407 41167464 5.5


FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans ?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service ?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications ?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
