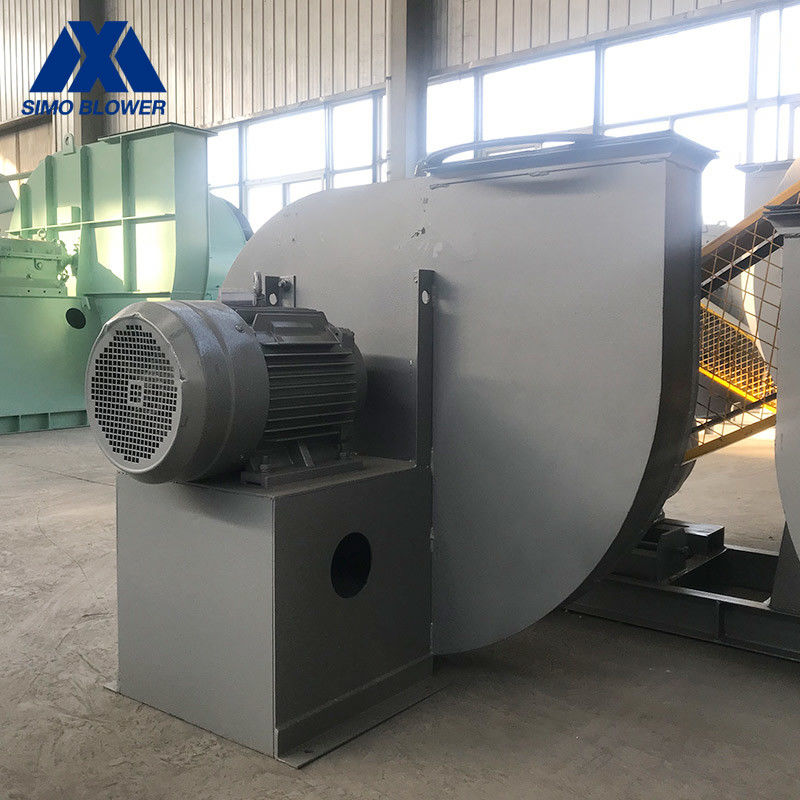

Three Phase Blower Flue Gas Fan Medium Pressure Materials Drying

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-05
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Motor Type: Three Phase AC Motor Voltage: 380V/415V/440V/660V/6KV/10KV
Power Source: Three Phase AC Motor Color: Customer's Requirement
High Light:

flue gas blower

,

single inlet centrifugal fan

Medium Pressure Materials Drying Flue Gas Centrifugal Blower Fan



Introduction



1. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

2. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.

3. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.

4. The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.

5. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.

6. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.

7. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.

8. Test assembly after production is completed to ensure that there is no interference between the components.

9. Provide on-site arrangement and guidance services.



Technical data



series model

Centrifugal Blower Fan

Rotation Speed
(r/min)

Centrifugal Blower Fan

Total Pressure
(Pa)

Centrifugal Blower Fan

Air Capacity
(m³/h)

Centrifugal Blower Fan

Power
(kW)

6-05

Centrifugal Blower Fan

2.5A 2800 1155451 4031043 0.55
3.3A 2825 1936954 10902301 1.1
5.4A 1420 1254994 21304358 3
6.4A 1440 18111436 35967358 5.5
7.1A 1440 22701697 534910354 7.5
8.5A 1470 33912535 936918137 18.5


FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans ?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service ?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications ?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
