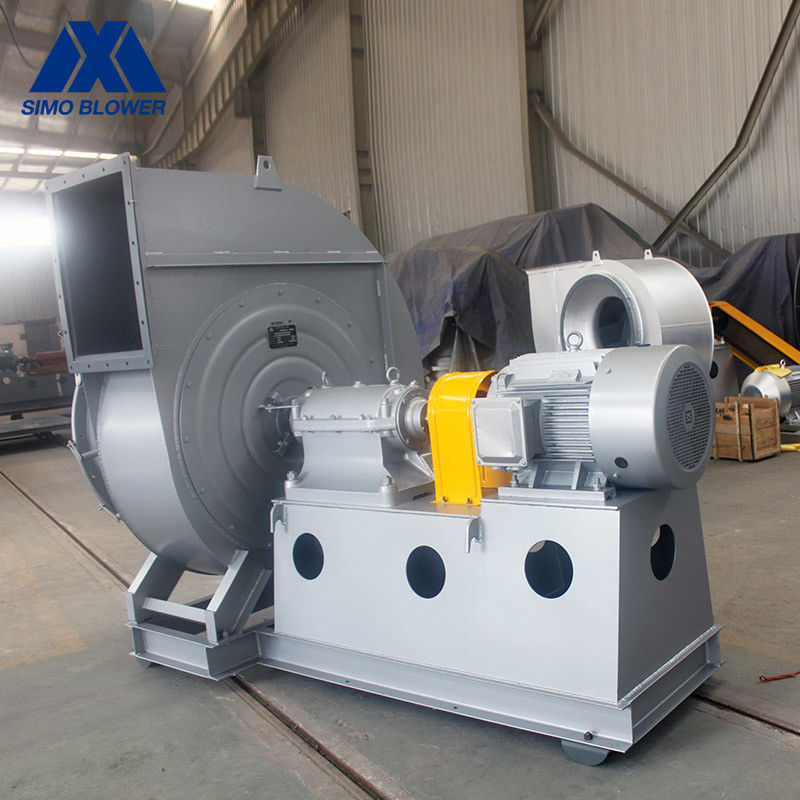

Medium Pressure Flue Gas Fan For Boiler Low Peripheral Speed

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-03
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Motor Type: Three Phase AC Motor Voltage: 380V/415V/440V/660V/6KV/10KV
Bearing Type: Rolling Bearing Color: Customer's Requirement
High Light:

flue gas blower

,

direct driven centrifugal fan

Medium Pressure Stokerfeed Boiler Flue Gas Centrifugal Blower Fan



Introduction



Medium Pressure Stokerfeed Boiler Flue Gas Centrifugal Blower Fans have high pressure coefficient, low peripheral speed, low noise, flat performance curve and wide area of high efficiency.

The Medium Pressure Stokerfeed Boiler Flue Gas Centrifugal Blower Fan is used in forging furnaces and high pressure forced ventilation and are widely used to transport materials and air. The maximum temperature should not exceed 250 degrees Celsius.

Suitable for flow and dust removal ventilation systems in high pressure heads.



Technical data



series model

Centrifugal Blower Fan

Rotation Speed
(r/min)

Centrifugal Blower Fan

Total Pressure
(Pa)

Centrifugal Blower Fan

Air Capacity
(m³/h)

Power
(kW)

6-03

Centrifugal Blower Fan

6D 18002400 17854325 24036830 411
7D 15002020 1874178 31809129 5.515
9D 16451800 33545482 742017300 2237


FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans ?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service ?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications ?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.



Medium Pressure Flue Gas Fan For Boiler Low Peripheral Speed 0

Medium Pressure Flue Gas Fan For Boiler Low Peripheral Speed 1
