Cement Fan
>
Medium Pressure Forced Draught Fan V Belt Driving Cement Blower

Medium Pressure Forced Draught Fan V Belt Driving Cement Blower

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-05
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 6-05
Electric Current Type:
AC
Drivetrain:
V-belt Driven
After-sales Service Provided:
Field Installation, Commissioning And Training
Main Shaft:
High-strength Carbon Structural Steel
Mounting:
Free Standing
System Type:
Single Inlet, Overhang Type
High Light:

High Light

High Light:

forced draught fan

,

centrifugal air blower

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Industrial Forced Draught Medium Pressure V-Belt Driving Cement Blower Fan



Introduction



The 6-05 medium-pressure series fan can meet the performance requirements of large flow and high pressure at the same time, and has the characteristics of high efficiency and low noise. It is a series centrifugal fan products with a wide range of performance.

The designed max full pressure efficiency is higher than 80% new series boiler ventilation fans and induced draft fans with the low noise.

It can be selected if the intake conditions are equivalent and the performance is suitable.

Industrial Forced Draught Medium Pressure V-Belt Driving Cement Blower Fan can be used to transport normal temperature or high temperature clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials, fiber materials, etc.

Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.



Technical data



PRODUCT PARAMETERS
Cement Blower Fan
Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Cement Blower Fan
Performance
Impeller diameter

400-2000

mm
Speed of mainshaft

≤3000

rpm
Pressure range

954-28000

Pa
Flow range

1090-230000

m3/h
Cement Blower Fan
Structure
Blade

Backward

Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain V-Belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Cement Blower Fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Cement Blower Fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



Choose the right fan type, reasonable operating condition fan parameters, preferred flow pattern ,reasonably organize the gas source, carefully designed leaf type, increase wind tongue clearance, properly reduce the fan speed, improvement volute design, design principles for purifying the flow and minimizing secondary flow losses and so on. Combined with the finite difference method numerical calculation machine air inlet and impeller wheel cover type line, and the uniformity of the flow field at the fan impeller inlet is used as the optimization criterion to optimize the air inlet. The above method is combined with the original fan impeller, volute and other optimization design methods to integrate the optimal design procedure of the impeller, the volute and the air inlet, the lower specific noise level and the smaller fan size.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

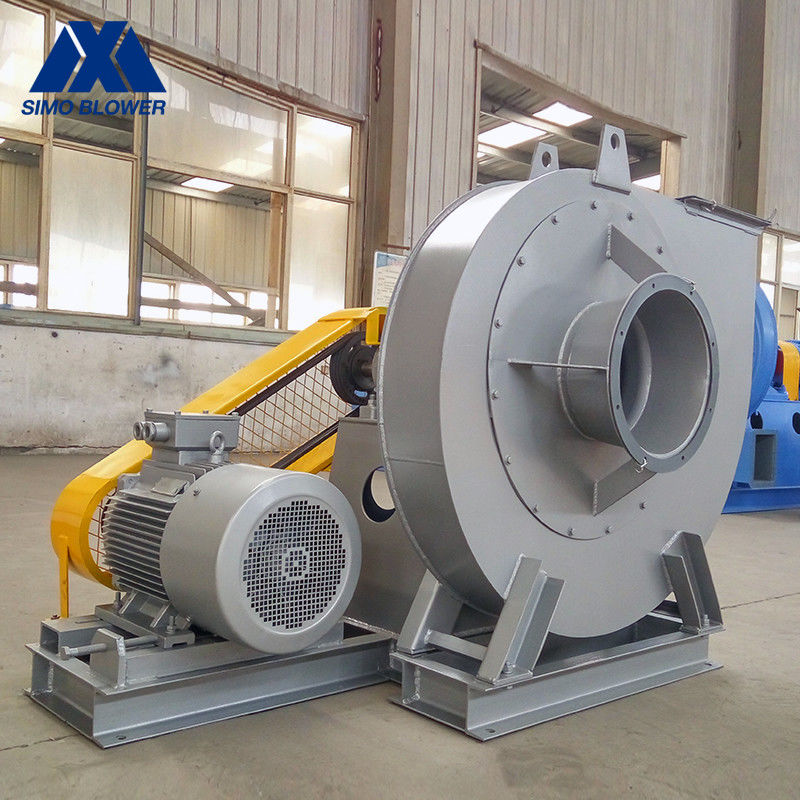

Medium Pressure Forced Draught Fan V Belt Driving Cement Blower 0
