Large Capacity Flue Gas Fan Single Suction Three Phase AC Motor

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-05
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Motor Type: Three Phase AC Motor Material: Carbon Steel/Alloy Steel/Stainless Steel
Color: Customer's Requirement Power Source: Three Phase AC Motor
High Light:

flue gas blower

,

single inlet centrifugal fan

Large Capacity Single Suction Flue Gas Centrifugal Blower Fan



Introduction



The Large Capacity Single Suction Flue Gas Centrifugal Blower Fan can be used in the feeding system of 2-670t/h steam boiler in thermal power plants, the Flue Gas Centrifugal Blower Fan can also meet the requirements of the high-pressure head performance parameters of the fluidized bed furnace.

This series of Flue Gas Centrifugal Blower Fan can also be used for dust removal, mine ventilation and general ventilation systems. The blower delivers air, and the induced draft fan delivers flue gas or gas containing foreign particles.

The Large Capacity Single Suction Flue Gas Centrifugal Blower Fan can be used for more than four years when the concentration of impurities is less than 200 mg/m3.

If it contains a lot of impurities, it also can be used, but it will shorten the service life.

The maximum operating temperature of the induced draft fan must not exceed 250°C.

The performance of the fan is expressed by parameters such as fan flow, full pressure, spindle speed, shaft power and efficiency.



Technical data



series model

Centrifugal Blower Fan

Rotation Speed
(r/min)

Centrifugal Blower Fan

Total Pressure
(Pa)

Centrifugal Blower Fan

Air Capacity
(m³/h)

Power
(kW)

5-05

Centrifugal Blower Fan

8D 1450 25921989 1202820607 15
10D 1450 40513108 2349340249 55
11D 1450 30362329 3126953571 55
12.4D 1450 38582960 4479276740 90



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans ?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service ?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications ?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

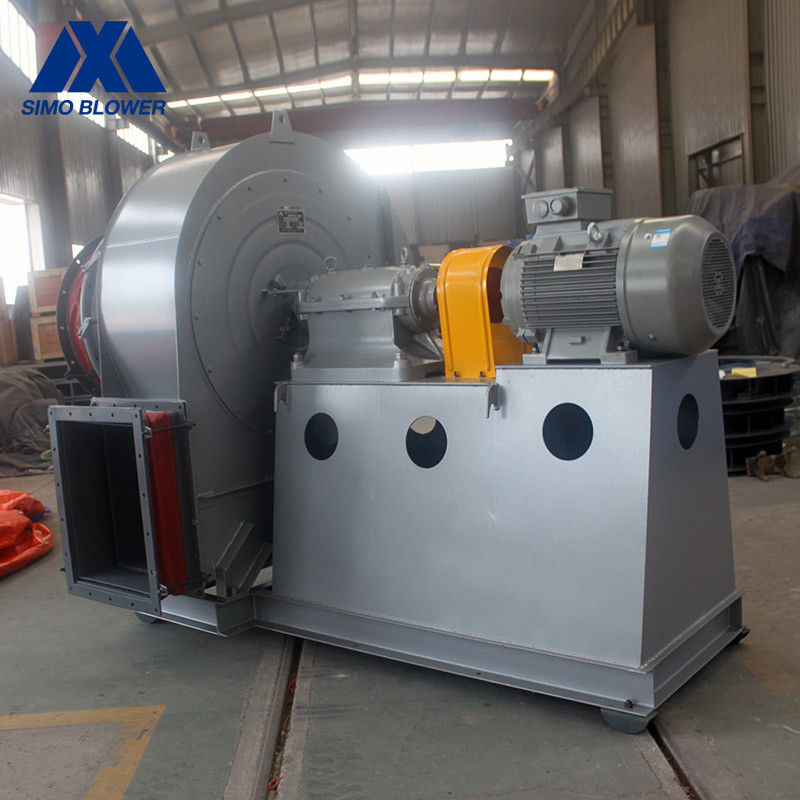

Large Capacity Flue Gas Fan Single Suction Three Phase AC Motor 0
