CFB Boiler Flue Gas Blower Ultrasonic Flaw Detection High Wear Resistance

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-06
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Drivetrain: Direct/Coupling Driven/V-belt Driven After-sales Service Provided: Field Installation, Commissioning And Training
Impeller Test: Ultrasonic Flaw Detection Power Source: Three Phase AC Motor
High Light:

direct driven centrifugal fan

,

single inlet centrifugal fan

High Wear Resistance CFB Boiler Flue Gas Centrifugal Blower Fan



Introduction



1. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

2. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.

3. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.

4. The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.

5. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.

6. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.

7. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.

8. Test assembly after production is completed to ensure that there is no interference between the components.

9. Provide on-site arrangement and guidance services.



Technical data



series model

Centrifugal Fan

Rotation Speed
(r/min)

Centrifugal Fan

Total Pressure
(Pa)

Centrifugal Fan

Air Capacity
(m³/h)

Power
(kW)

6-06

Centrifugal Fan

8C 1450 1859~2745 11000~26400 15 ~ 22
9C 1450 2353~3474 15700~37500 30 ~ 45
10C 1450 2905~4289 21500~51500 45 ~ 75
11C 960 ~ 1450 1541~5190 22700~68500 22 ~ 110
12C 960 ~ 1450 1834~6176 24600~89000 37 ~ 160
13C 960 ~ 1450 2152~7248 31200~113000 55 ~ 250
14C 960 ~ 1450 2496~8406 39000~141000 75 ~ 400
15C 730 ~ 1450 1657~9650 36600~172000 45 ~ 500
16C 730 ~ 1450 1885~10980 44300~211000 75 ~ 710
17C 730 ~ 960 2128~5433 53200~168000 90 ~ 280
18C 730 ~ 960 2386~6091 63100~199000 110 ~ 355
19C 730 ~ 960 2658~6787 74200~234000 160 ~ 500
20C 730 ~ 960 2946~7520 86700~273000 200 ~ 630
21C 580 ~ 960 2050~8290 79500~316000 200 ~ 800
22C 580 ~ 960 2250~9099 92200~363000 220 ~ 1000
23.5C 580 ~ 960 2567~10380 112000~443000 220 ~ 1400
25C 580 ~ 730 6794~6464 134000~406000 355 ~ 800
26.5C 480 ~ 730 2236~7633 132000~483000 220 ~ 1120
28C 480 ~ 730 2496~8522 156000~569000 315 ~ 1400
29.5C 480 ~ 730 2771 ~ 9460 183000~667000 400 ~ 2000


FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans ?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service ?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications ?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

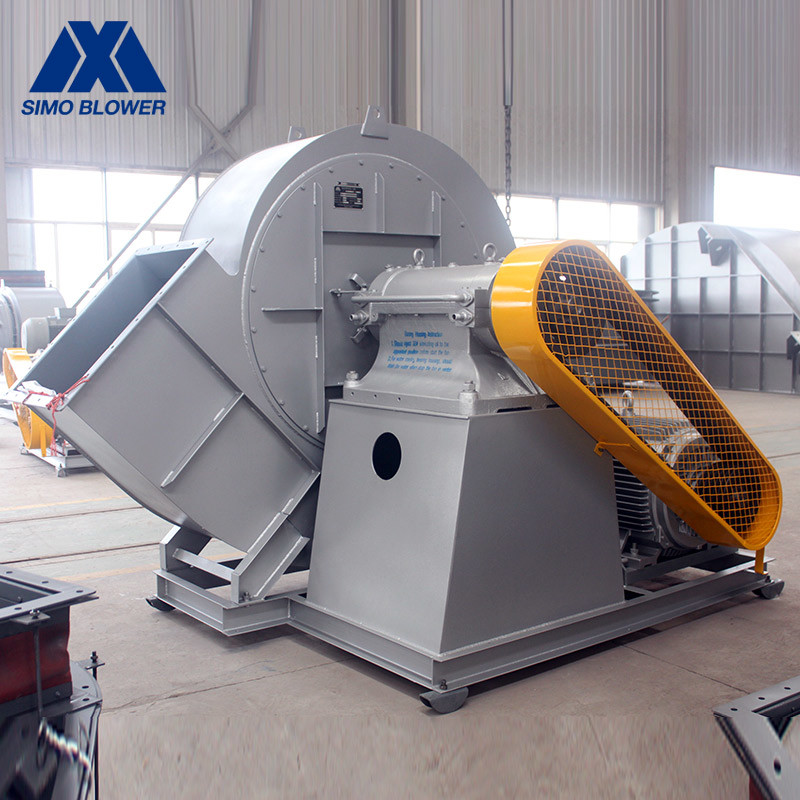

CFB Boiler Flue Gas Blower Ultrasonic Flaw Detection High Wear Resistance 0

CFB Boiler Flue Gas Blower Ultrasonic Flaw Detection High Wear Resistance 1
