Flue Gas Fan
>
V-Belt Driving Stainless Steel Flue Gas Centrifugal Blower Fan

V-Belt Driving Stainless Steel Flue Gas Centrifugal Blower Fan

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-16
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 4-16
Application:
Industrial Ventilation
Feature:
High Performance
Blade:
Forward / Backward/Backward Curved
Impeller Support:
SWSI (Single Width, Single Inlet), Impeller Overhung
Noise:
Optional
Medium:
Clean Air/Dusty Air
Highlight:

High Light

Highlight:

flue gas blower

,

single inlet centrifugal fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

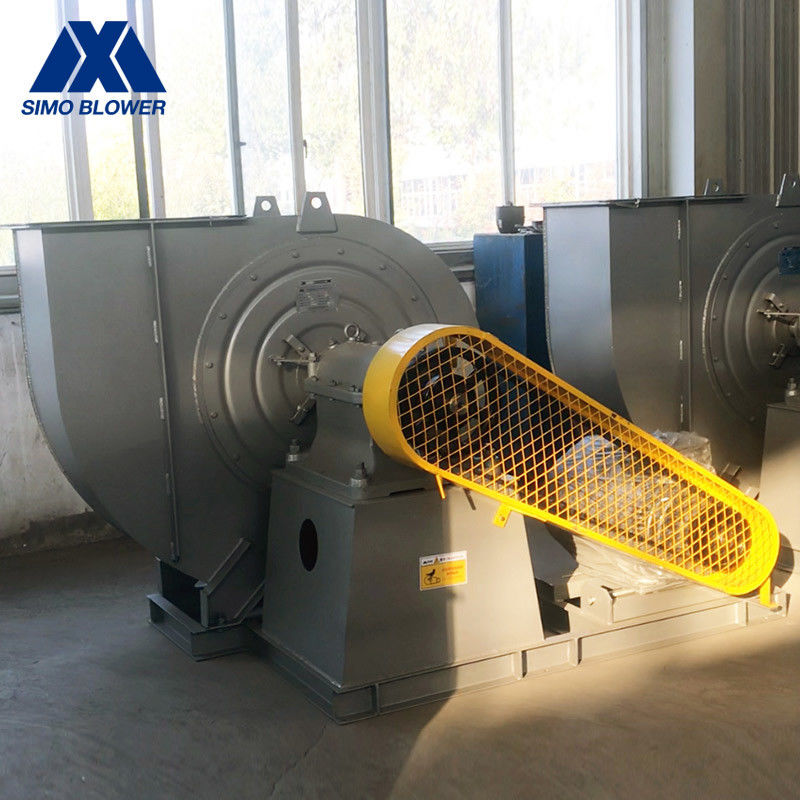

V-Belt Driving Stainless Steel Flue Gas Centrifugal Blower Fan



Introduction



The V-Belt Driving Stainless Steel Flue Gas Centrifugal Blower Fan can be used for indoor ventilation in general factories and large buildings.

It can be used as both an input gas and an output gas. The type of gas transported is air and other non-self-igniting, non-self-explosive, non-surrounding, harmless to the human body and is non-corrosive to steel materials.

The V-Belt Driving Stainless Steel Flue Gas Centrifugal Blower Fan can also be made into explosion-proof and flame-retardant type according to the requirements of use. It is suitable for occasions with flammable, explosive and corrosive gases.

No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3. The gas temperature does not exceed 80°C, and similar gas properties are also available.

Can be widely used in factories, mines, stadiums, theaters, basements, large hotels, restaurants, shopping malls and large buildings for ventilation, cooling and dust removal, etc, it can also be used as a gas cycle with other types of mechanical equipment, the primary transport medium is air and other gases that are not self-igniting, non-self-destructing, harmless to the human body, and non-corrosive to steel.



Technical data



series model

Flue Gas Fan

Rotation Speed
(r/min)

Flue Gas Fan

Total Pressure
(Pa)

Flue Gas Fan

Air Capacity
(m³/h)

Power
(kW)

4-16

Flue Gas Fan

7C 710~1800 235~2501 611030200 1.5~22
8C 630~1600 226~2491 845041700 2.2~30


FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans ?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service ?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications ?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.



V-Belt Driving Stainless Steel Flue Gas Centrifugal Blower Fan 0

V-Belt Driving Stainless Steel Flue Gas Centrifugal Blower Fan 1
