Anti Explosion Flue Gas Fan Single Suction Centrifugal SIMO Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-09
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Motor Type: Three Phase AC Motor Category: Blower
System Type: Single Inlet, Overhang Type Medium: Clean Air/Dusty Air
High Light:

flue gas blower

,

direct driven centrifugal fan

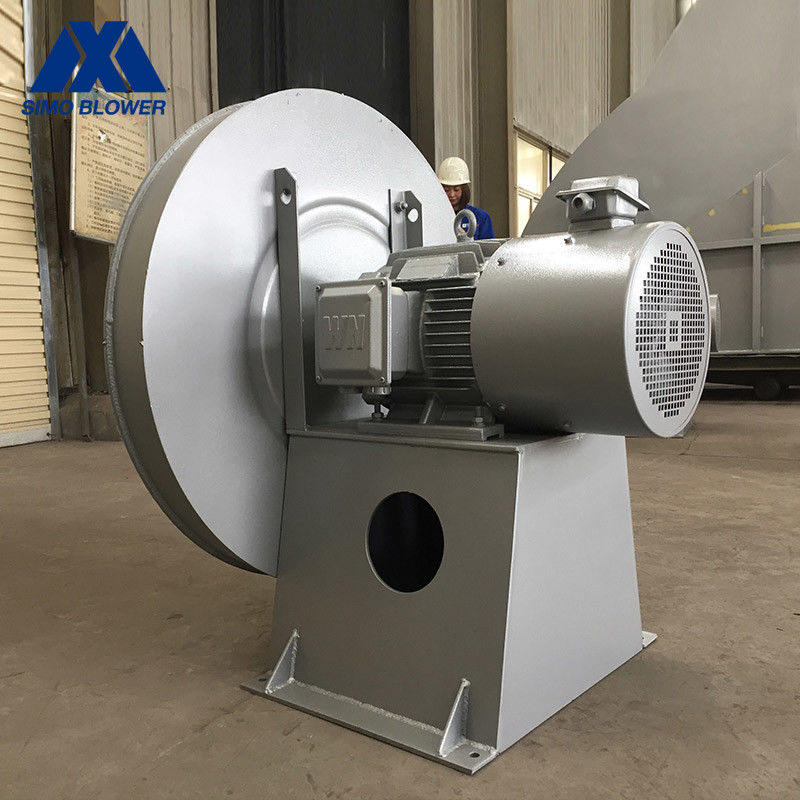

Single Suction Anti-Explosion Flue Gas Centrifugal Blower Fan



Introduction



The Single Suction Anti-Explosion Flue Gas Centrifugal Blower Fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.

The Single Suction Anti-Explosion Flue Gas Centrifugal Blower Fan belongs to small flow and medium pressure series.

The Single Suction Anti-Explosion Flue Gas Centrifugal Blower Fan has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.

This series of Flue Gas Centrifugal Blower Fan is a new type of high efficiency industrial fan in the field of small flow and medium pressure.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.



Technical data



series model

Blower Fan

Rotation Speed
(r/min)

Blower Fan

Total Pressure
(Pa)

Blower Fan

Air Capacity
(m³/h)

Power
(kW)

7-09

Blower Fan

5.6A 1420 14621263 29535907 3
6A 1440 17281492 36847368 5.5
7.1A 1460 24932153 618912378 11


FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans ?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service ?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications ?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
