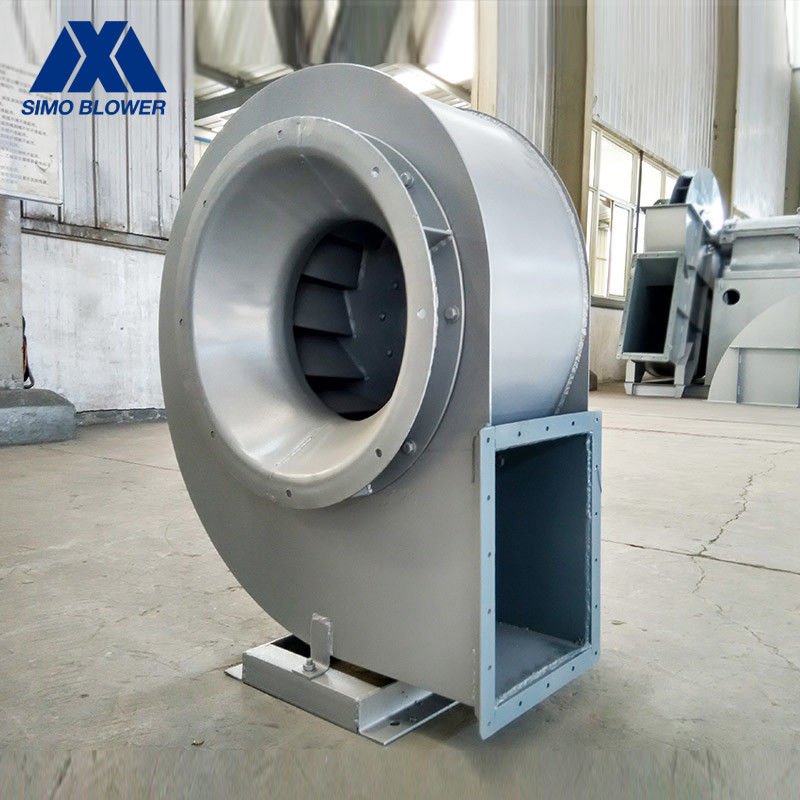

Heat Dissipation Flue Gas Fan Single Inlet Centrifugal Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-14
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Mounting: Free Standing Delivery Time: 30 Days
Impeller: Dynamic Balanced Medium: Clean Air/Dusty Air
High Light:

flue gas blower

,

single inlet centrifugal fan

Single Inlet Heat Dissipation Flue Gas Centrifugal Blower Fan



Introduction



The Single Inlet Heat Dissipation Flue Gas Centrifugal Blower Fan is the earliest used fan in China, and it is also the most commonly used fan.

Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.

No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.



Technical data



series model

Centrifugal Blower

Rotation Speed
(r/min)

Centrifugal Blower

Total Pressure
(Pa)

Centrifugal Blower

Air Capacity
(m³/h)

Power
(kW)

4-14

Centrifugal Blower

2.8A 1450 ~ 2900 166 ~ 970 565 2262 0.55 ~ 1.1
3.15A 1450 ~ 2900 215 ~ 1245 912 3435 0.55 ~ 1.5
3.55A 1450 ~ 2900 274 ~ 608 13545013 0.55 ~ 3
4A 1450 ~ 2900 353 ~ 2069 19927281 0.75 ~ 4
4.5A 1450 ~ 2900 460 ~ 2657 289540585 1.1 ~ 7.5
5A 1450 ~ 2900 578 ~ 3314 402514490 2.2 ~ 15



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans ?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service ?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications ?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
