Dust Collector Fan
>
Explosionproof Mine Ventilate Dust Collector Centrifugal Blower Fan

Explosionproof Mine Ventilate Dust Collector Centrifugal Blower Fan

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-05
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 6-05
Application:
Industrial Ventilation
Feature:
High Performance
After-sales Service Provided:
Field Installation, Commissioning And Training
Electric Current Type:
AC
Impeller Support:
SWSI (Single Width, Single Inlet), Impeller Overhung
Medium:
Clean Air/Dusty Air
High Light:

High Light

High Light:

dust extraction fan

,

single inlet centrifugal blower

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Explosionproof Mine Ventilate Dust Collector Centrifugal Blower Fan



Introduction



Choose the right fan type, reasonable operating condition fan parameters, preferred flow pattern ,reasonably organize the gas source, carefully designed leaf type, increase wind tongue clearance, properly reduce the fan speed, improvement volute design, design principles for purifying the flow and minimizing secondary flow losses and so on. Combined with the finite difference method numerical calculation machine air inlet and impeller wheel cover type line, and the uniformity of the flow field at the fan impeller inlet is used as the optimization criterion to optimize the air inlet. The above method is combined with the original fan impeller, volute and other optimization design methods to integrate the optimal design procedure of the impeller, the volute and the air inlet, the lower specific noise level and the smaller fan size.



Technical data



series model

Blower Fan

Rotation Speed
(r/min)

Blower Fan

Total Pressure
(Pa)

Blower Fan

Air Capacity
(m³/h)

Power
(kW)

6-05

Blower Fan



3.55D 29503150 5881651 8413162 1.52.2
4D 3450 16761893 13553996 3
4.5D 29253250 16672873 23175522 45.5
5.4D 26002900 20643240 39008901 7.511
7.1D 19152100 18593283 711315919 1118.5
9D 16401750 21913338 1240725630 2230
10D 1600 34442575 1660432144 37
11.2D 1480 36972764 2157841773 45
40863055 2157841773 55


FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans ?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service ?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications ?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

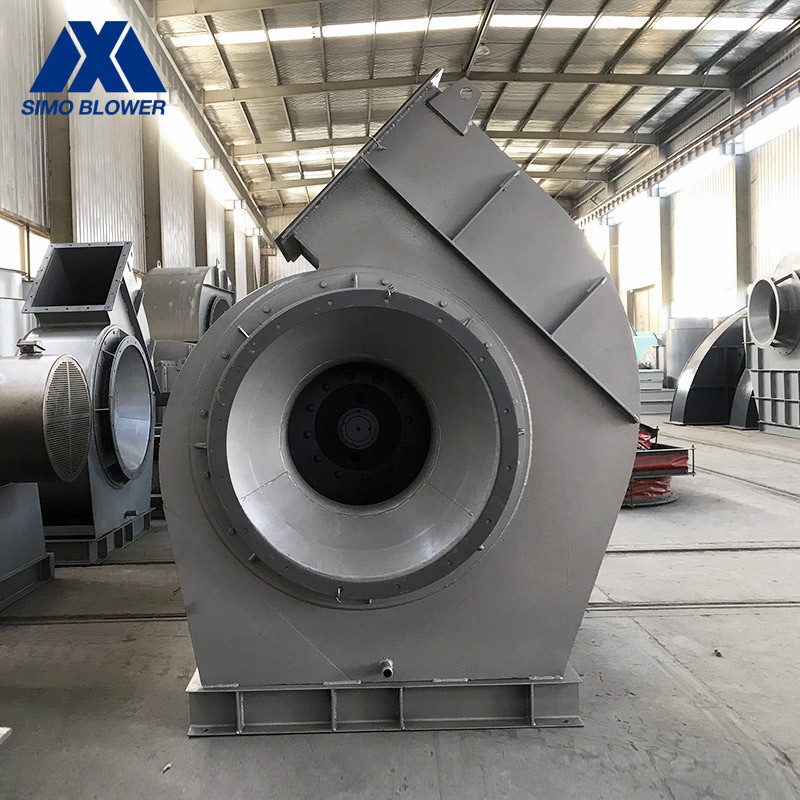

Explosionproof Mine Ventilate Dust Collector Centrifugal Blower Fan 0
