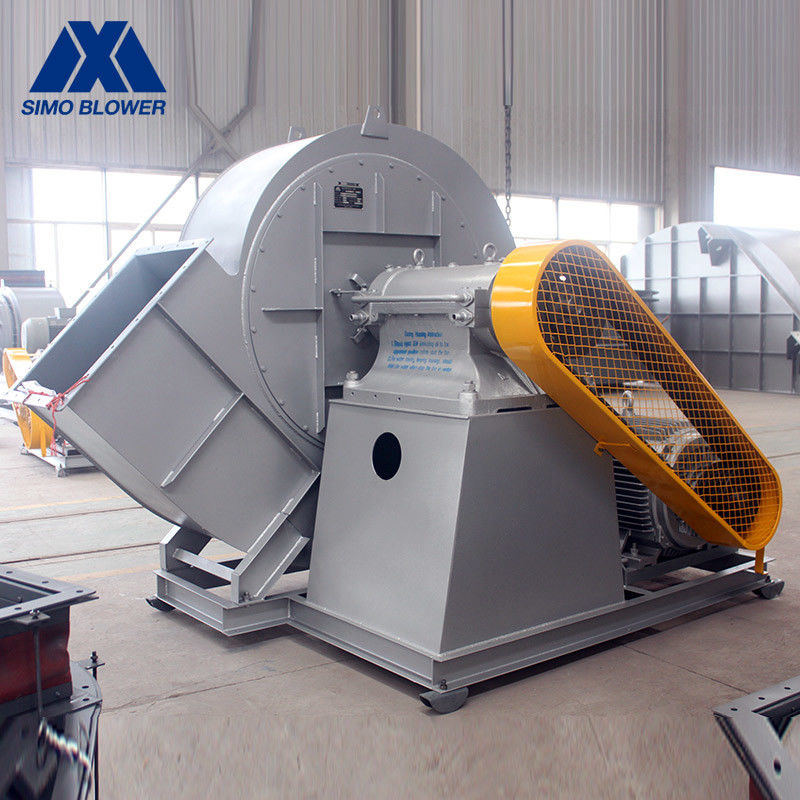

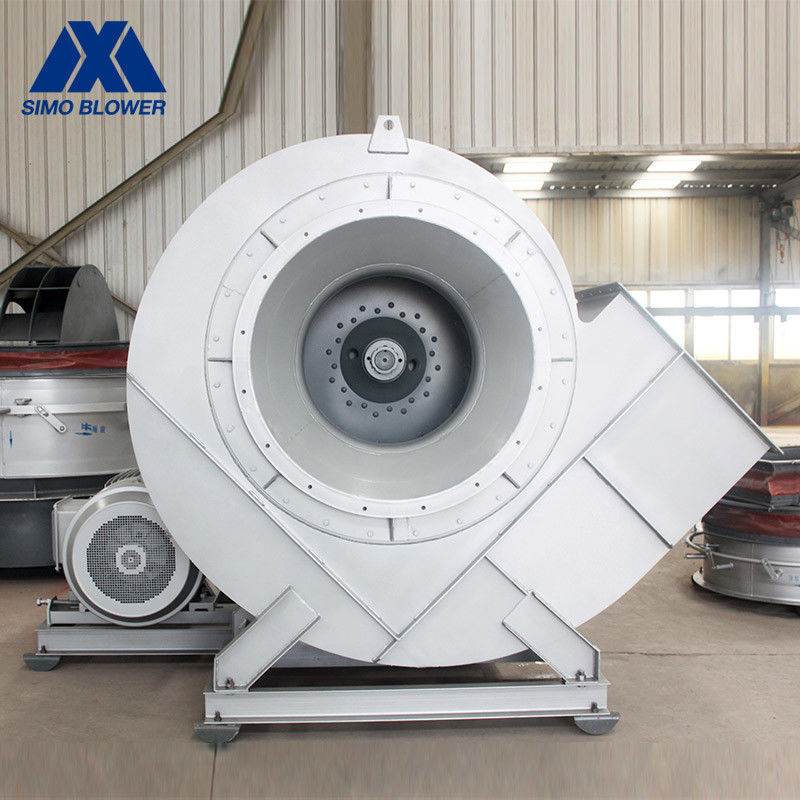

Q345 High Temperature Materials Cooling Dust Collector Centrifugal Blower Fan
Introduction
1. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.
2. The blade placement angle is optimized, more wear-resistant and longer service life.
3. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.
4. The fan is equipped with temperature and vibration sensors, which can easily install the fan operation monitoring device.
5. Made of high quality carbon steel, stainless steel or other metal materials are available upon request.
6. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
7. Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance.
For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.
8. Large parts and components are disassembled and transported, so that most parts can be loaded into containers for transportation, saving you shipping costs.
9. Each component has an installation number. Under the guidance of the installation manual, the system assembly can be completed smoothly.
10. Provide on-site arrangement and guidance services.
Technical data
series | model |
Blower Fan Rotation Speed |
Blower Fan Total Pressure |
Blower Fan Air Capacity |
Power (kW) |
---|---|---|---|---|---|
6-12 Blower Fan |
3.15C | 1600~3150 | 354~1880 | 755~3323 | 0.75~3 |
4C | 1250~2500 | 345~1933 | 1184~5495 | 0.75~4 | |
5C | 1400~2000 | 675~1953 | 2487~8623 | 2.2~7.5 | |
6.3C | 1000~1600 | 344~1985 | 1776~13799 | 1.1~11 | |
8C | 1120~1400 | 547~1517 | 3554~12074 | 3~7.5 | |
10C | 800~1250 | 350~1953 | 2843~22075 | 1.5~15 | |
12.5C | 400~1000 | 350~2043 | 7402~56902 | 2.2~22 |
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans ?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service ?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications ?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
