| Place of Origin: | Henan China |
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-10 |

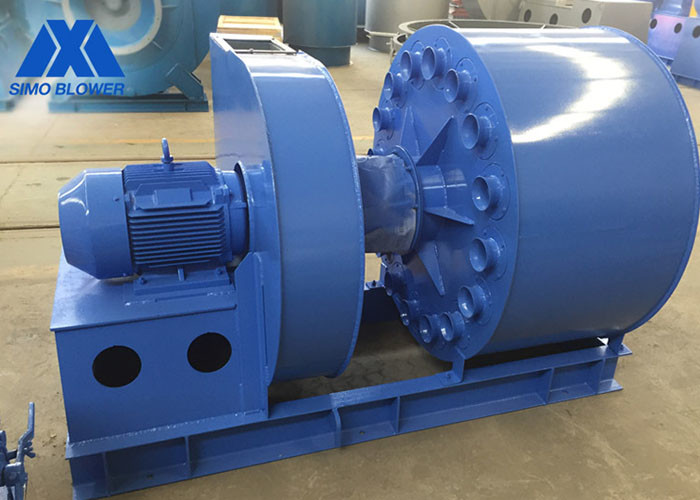

Single Suction Stainless Steel Dust Collector Centrifugal Blower Fan
Introduction
The Single Suction Stainless Steel Dust Collector Centrifugal Blower Fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.
It is suitable for conveying air and non-corrosive, unnatural and non-viscous gases.
The temperature of the medium is generally not more than 80°C, and the dust and hard fine particles contained in the medium are not more than 150mg/m3.
The Dust Collector fan can also be used in cement kiln decomposition process, steel smelting and other special occasions use of high temperature fan (use heat resistant & high strength material).
The Single Suction Stainless Steel Dust Collector Centrifugal Blower Fan is the latest developed high-efficiency and energy-saving product, whose performance fully meets the aerodynamic performance of general fan 9-08 series, and has the characteristics of high efficiency, low noise, flat performance curve, large flow regulation range and wide efficient area.
Technical data
| series | model |
Centrifugal Blower Fan Rotation Speed |
Centrifugal Blower Fan Total Pressure |
Centrifugal Blower Fan Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
9-10 Centrifugal Blower Fan |
4A | 2900 | 3253～3597 | 824～1704 | 2.2～3 |
| 4.5A | 2900 | 4112～4603 | 1174～2504 | 4～5.5 | |
| 5A | 2900 | 5080～5697 | 1610～3488 | 7.5～11 | |
| 5.6A | 2900 | 6400～7182 | 2262～4901 | 11～15 | |
| 6.3A | 2900 | 8148～9149 | 3220～6978 | 18.5～30 | |
| 7.1A | 2900 | 10426～11717 | 4610～9988 | 37～55 |
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
