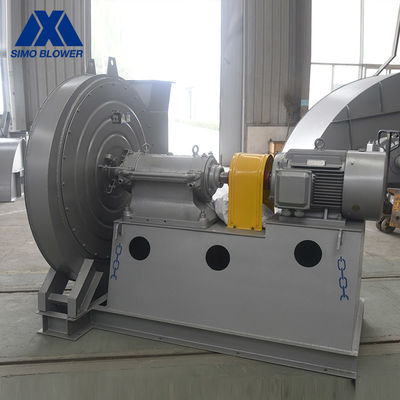

Carbon Steel High Air Flow Coal-Fired Boiler Dust Collector Fan
Introduction
The Carbon Steel High Air Flow Coal-Fired Boiler Dust Collector Fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.
The Carbon Steel High Air Flow Coal-Fired Boiler Dust Collector Fan is suitable for conveying air and non-corrosive, unnatural and non-viscous gases.
The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.
Technical data
series | model |
Dust Collector Fan Rotation Speed |
Dust Collector Fan Total Pressure |
Dust Collector Fan Air Capacity |
Power (kW) |
---|---|---|---|---|---|
9-10 Dust Collector Fan |
8D | 1450~2900 | 3231~15034 | 3297~14287 | 7.5~110 |
9D | 1450 | 4101~4597 | 4695~10717 | 15~22 | |
10D | 1450 | 4958~5840 | 6440~15455 | 30~37 | |
11.2D | 960~1450 | 2705~7364 | 5990~21713 | 15~75 | |
12.5D | 960~1450 | 3975~9229 | 8327~30186 | 22~110 | |
14D | 960~1450 | 4249~11668 | 11699~42409 | 37~220 | |
16D | 960~1450 | 5575~15425 | 17463~63305 | 75~315 |
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
