| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-12 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| After-sales Service Provided: | Field Installation, Commissioning And Training | Noise: | Optional |
| Category: | Blower | Delivery Time: | 30 Days |
| High Light: | dust control fan,single inlet centrifugal blower |
||

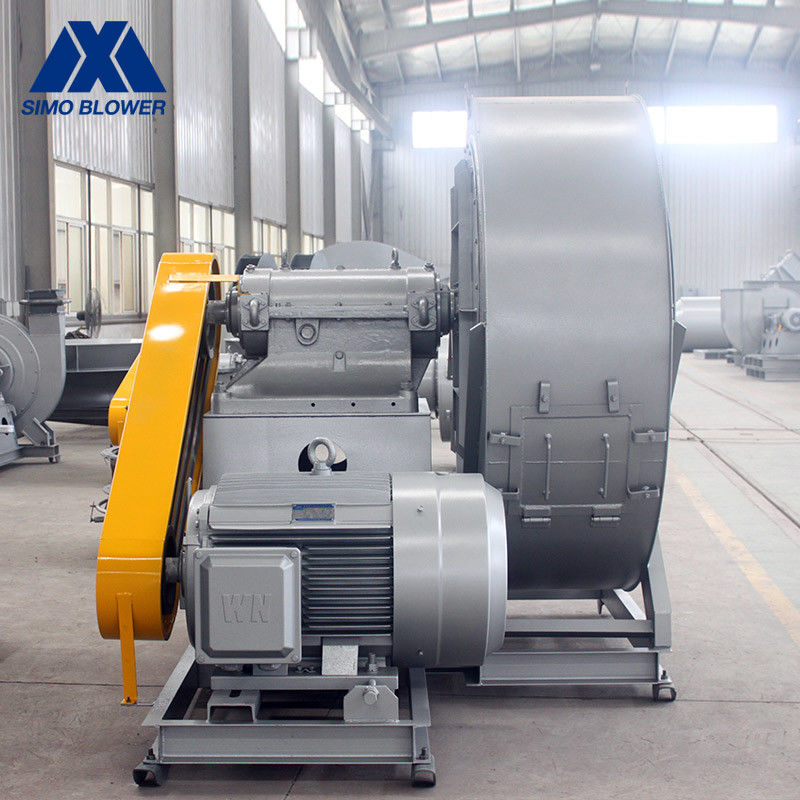

Stainless Steel Energy Saving Metallurgy Exhaust Dust Collector Fan
Introduction
The blade placement angle is optimized, more wear-resistant and longer service life. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed. The fan is equipped with temperature and vibration sensors, which can easily install the fan operation monitoring device.
Made of high quality carbon steel, stainless steel or other metal materials are available upon request.Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
Technical data
| series | model |
Dust Collector Fan Rotation Speed |
Dust Collector Fan Total Pressure |
Dust Collector Fan Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
6-12 Dust Collector Fan |
3.15C | 1600～3150 | 354～1880 | 755～3323 | 0.75～3 |
| 4C | 1250～2500 | 345～1933 | 1184～5495 | 0.75～4 | |
| 5C | 1400～2000 | 675～1953 | 2487～8623 | 2.2～7.5 | |
| 6.3C | 1000～1600 | 344～1985 | 1776～13799 | 1.1～11 | |
| 8C | 1120～1400 | 547～1517 | 3554～12074 | 3～7.5 | |
| 10C | 800～1250 | 350～1953 | 2843～22075 | 1.5～15 | |
| 12.5C | 400～1000 | 350～2043 | 7402～56902 | 2.2～22 |
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
