Dust Collector Fan
>

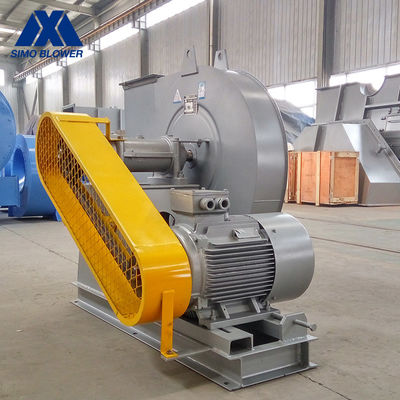

Building Ventilation Dust Collector Fan V Belt Driven Centrifugal Fan

Building Ventilation Dust Collector Fan V Belt Driven Centrifugal Fan

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-05
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 6-05
Application:
Industrial Ventilation
Feature:
High Performance
After-sales Service Provided:
Field Installation, Commissioning And Training
Noise:
Optional
Motor Type:
Three Phase AC Motor
Delivery Time:
30 Days
High Light:

High Light

High Light:

dust extraction fan

,

dust control fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Long Life Building Ventilation V-Belt Driving Dust Collector Fan



Introduction



The Long Life Building Ventilation V-Belt Driving Dust Collector Fan is generally used for gas transportation of granular or powdery materials, and can be widely used to transport air and non-corrosive non-self-igniting, non-viscous substances.

The temperature of the medium generally does not exceed 50°C (max 80°C), the dust and hard particles contained in the medium is not more than 150 mg / m3.

The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.



Technical data



series model

Dust Collector Fan

Rotation Speed
(r/min)

Dust Collector Fan

Total Pressure
(Pa)

Dust Collector Fan

Air Capacity
(m³/h)

Power
(kW)

6-05

Dust Collector Fan

3.55C 29503150 5881651 8413162 1.52.2
4C 3450 16761893 13553996 3
4.5C 29253250 16672873 23175522 45.5
5.4C 26002900 20643240 39008901 7.511
7.1C 19152100 18593283 711315919 1118.5
9C 16401750 21913338 1240725630 2230
10C 1600 34442575 1660432144 37
11.2C 1480 36972764 2157841773 45
40863055 2157841773 55


FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
