| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-09 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Drivetrain: | Direct/Coupling Driven/V-belt Driven | Mounting: | Free Standing |
| Current Type: | AC | Color: | Customer's Requirement |
| High Light: | backward curved centrifugal fan,commercial centrifugal fans |
||

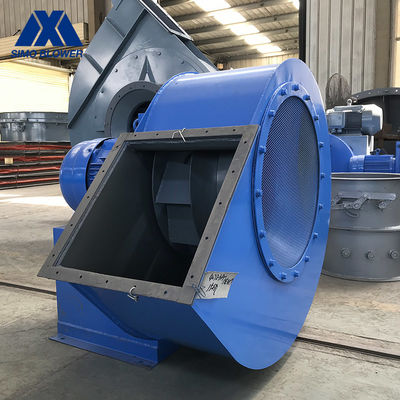

Low Pressure Alternating Current Induced Draught Long Lifetime Boiler Fan
Introduction
1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.
2. The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.
3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.
4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
5. In the case of a monolithic bracket, the installation is very simple and requires little support from a professional technician.
6. After the production is completed, all products are tested for running and vibration values for reliable operation.
Technical data
| series | model |
Boiler Fan Rotation Speed |
Boiler Fan Total Pressure |
Boiler Fan Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
4-09 Boiler Fan |
2.8A | 2900 | 994～606 | 1131～2356 | 1.5 |
| 3.2A | 1450 ~ 2900 | 198 ~1300 | 844 ～ 3517 | 1.1 ~ 2.2 | |
| 3.6A | 1450 ~ 2900 | 247 ~ 1578 | 1332 ～ 5268 | 1.1 ~ 3 | |
| 4A | 1450 ~ 2900 | 329 ~ 2014 | 2006 ～ 7419 | 1.1 ~ 5.5 | |
| 4.5A | 1450 ~ 2900 | 416 ~ 2554 | 2856 ～ 10562 | 1.1 ~ 7.5 | |
| 5A | 1450 ~ 2900 | 502 ~ 3187 | 3864 ～15456 | 2.2 ~ 15 | |
| 6A | 960 ~ 1450 | 317 ~ 1139 | 4420 ～ 13353 | 1.5 ~ 4 |
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
