Flue Gas Denitrification Boiler Fan Centrifugal SIMO Blower Anti Abrasive

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-03
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Electric Current Type: AC
Lubrication: Oil Bath Lubrication Color: Customer's Requirement
High Light:

low noise centrifugal fan

,

backward curved centrifugal fan

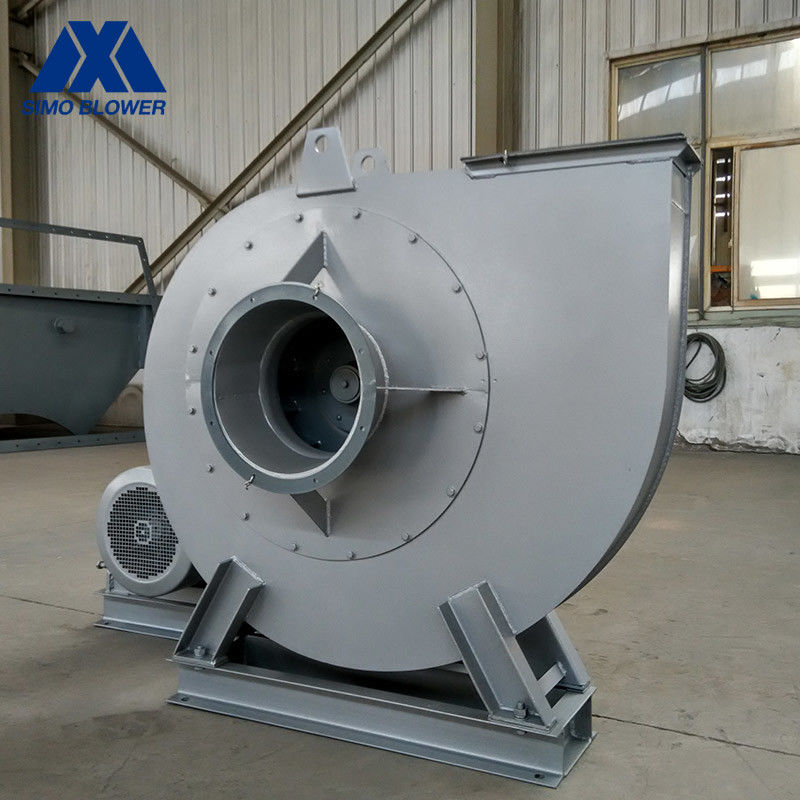

Anti Abrasive Industrial Boiler Flue Gas Denitrification Centrifugal Boiler Fan



Introduction



The Anti Abrasive Industrial Boiler Flue Gas Denitrification Centrifugal Boiler Fan a special dust-discharging fan designed jointly by the fan industry.

It has the characteristics of not easy dust accumulation and wear resistant, high efficiency and low noise. This series is a range of centrifugal fans with a wide range of performance.

It is suitable for discharging gas containing dust, wood chips and finely divided fibers (If it contains hard particles, a dust removal device must be installed in front of the fan.), it can also be used as a general ventilator for ventilation.It can output higher outlet pressure and provide more gas flow at the same time, low noise.The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.



Technical data



series model

Centrifugal Boiler Fan

Rotation Speed
(r/min)

Centrifugal Boiler Fan

Total Pressure
(Pa)

Centrifugal Boiler Fan

Air Capacity
(m³/h)

Power
(kW)

6-03

Centrifugal Boiler Fan

3.15C 1600~3150 354~1880 755~3323 0.75~3
4C 1250~2500 345~1933 1184~5495 0.75~4
5C 1400~2000 675~1953 2487~8623 2.2~7.5
6.3C 1000~1600 344~1985 1776~13799 1.1~11
8C 1120~1400 547~1517 3554~12074 3~7.5
10C 800~1250 350~1953 2843~22075 1.5~15
12.5C 400~1000 350~2043 7402~56902 2.2~22



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
