Single Suction Boiler Fan High Volume Low Pressure Air Blowers

Single Suction Boiler Fan High Volume Low Pressure Air Blowers
Brand Name
SIMO
Product Model
SIMO Blower 9-10
Certificate
CE, ISO9001:2008,TUV
Country Of Origin
Henan China
MOQ
1 Set
Unit Price
300-5000 USD
Payment Method
T/T, L/C, Payment Term Is Negotiable
Supply Capacity
500 Sets Per Month
Product Details
Highlight:

backward curved centrifugal fan

,

commercial centrifugal fans
Application: Industrial Ventilation
Feature: High Performance
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
Electric Current Type: AC
Impeller Test: Ultrasonic Flaw Detection
Color: Customer's Requirement
Product Description
Detailed Specifications And Features

Single Suction High Volume Industrial Forced Draught Boiler Fan



Introduction



The Single Suction High Volume Industrial Boiler Forced Draught Boiler Fan is the latest developed high-efficiency and energy-saving product, whose performance fully meets the aerodynamic performance of general fan 9-08 series, and has the characteristics of high efficiency, low noise, flat performance curve, large flow regulation range and wide efficient area.The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.Running test and vibration value detection after the production is completed, the fan operation is reliable.



Technical data



series model

Boiler Fan

Rotation Speed
(r/min)

Boiler Fan

Total Pressure
(Pa)

Boiler Fan

Air Capacity
(m³/h)

 Power
(kW)

9-10

Boiler Fan

 8D 1450～2900 3231～15034 3297～14287 7.5～110
9D 1450 4101～4597 4695～10717 15～22
10D 1450 4958～5840 6440～15455 30～37
11.2D 960～1450 2705～7364 5990～21713 15～75
12.5D 960～1450 3975～9229 8327～30186 22～110
14D 960～1450 4249～11668 11699～42409 37～220
16D 960～1450 5575～15425 17463～63305 75～315



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

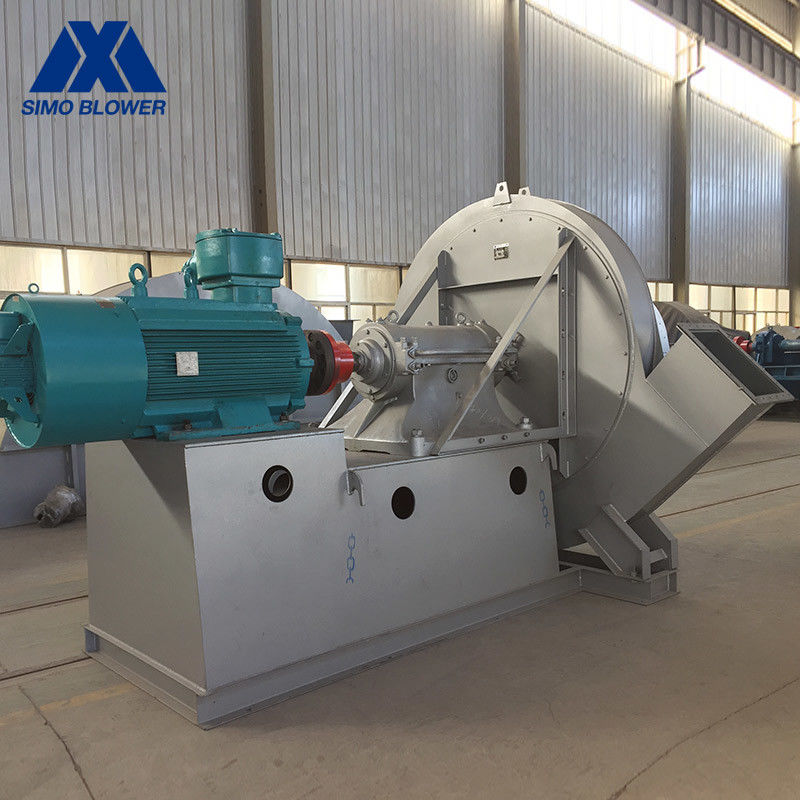

Single Suction Boiler Fan High Volume Low Pressure Air Blowers 0

Single Suction Boiler Fan High Volume Low Pressure Air Blowers 1
