| Place of Origin: | Henan China |
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-08 |

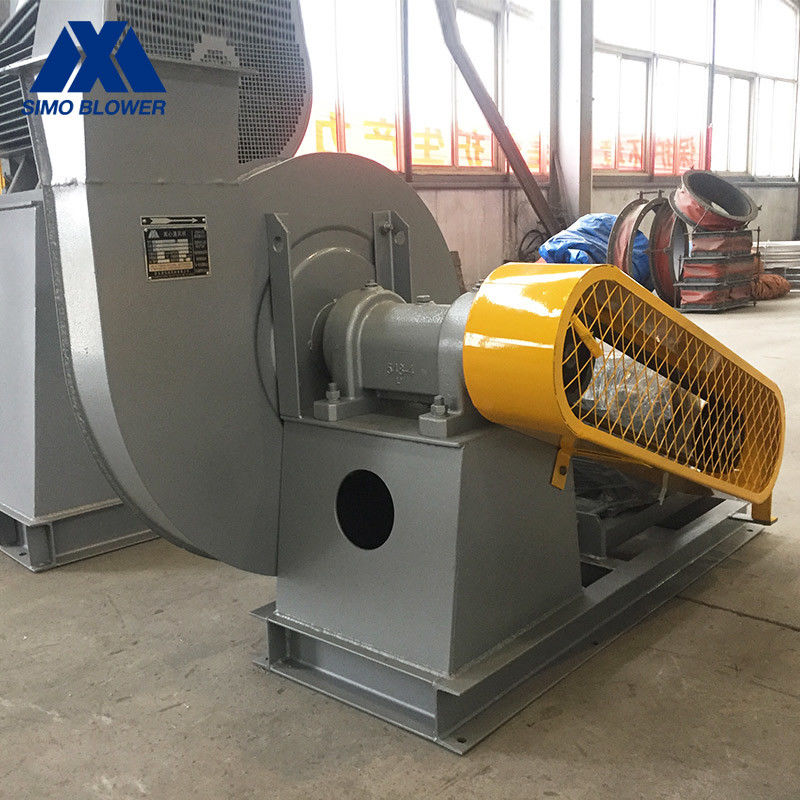

Q345 Industrial Explosion Protection Industrial Boiler Exhaust Boiler Fan
Introduction
The Q345 Industrial Explosion Protection Industrial Boiler Exhaust Boiler Fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.
The temperature of the medium generally does not exceed 50 ° C (maximum not more than 80 ° C). The dust and hard particles contained in the medium are not more than 150 mg/m3.
For flammable and explosive gas transportation, the impeller can be processed with aluminum alloy to prevent sparks during operation.
The fan with explosion-proof motor, and its performance parameters are the same as those ordinary motors.
The fan has high efficiency, low noise, flat performance curve and wide area of high efficiency.The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.
Technical data
| series | model |
Boiler Fan Rotation Speed |
Boiler Fan Total Pressure |
Boiler Fan Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
9-08 Boiler Fan |
7.1C | 2900 | 10635～12427 | 12292～19360 | 75～110 |
| 8C | 1450～2900 | 3249～15955 | 8792～27696 | 18.5～200 | |
| 9C | 1450 | 4181～4869 | 12518～19717 | 30～45 | |
| 10C | 1450 | 5065～6143 | 17172～30052 | 55～75 | |
| 11.2C | 960～1450 | 3031～7747 | 15973～42221 | 30～132 | |
| 12.5C | 960～1450 | 3450～9713 | 22206～58695 | 45～250 | |
| 14C | 960～1450 | 4341～12285 | 31197～82463 | 75～400 | |
| 16C | 960～1450 | 5696～16250 | 46569～123090 | 185～850 |
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
