High Air Flow ID Boiler Fan Corrosion Resistant Exhaust Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-11
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Delivery Time: 30 Days System Type: Single Inlet, Overhang Type
Noise: Optional Medium: Clean Air/Dusty Air
High Light:

low noise centrifugal fan

,

commercial centrifugal fans

High Air Flow Corrosion Resistant Industrial Boiler ID Boiler Fan



Introduction



It is boiler induced draft fan with a total internal pressure efficiency of 90.5% specially designed to be suitable for various coal quality and equipped with a smoke-and-dust removal device (1~20 tons/hour).

This type of fan is currently used in the boiler industry. The air volume of the induced draft fan and the difference in wind pressure are relatively large, in order to adapt to the above situation, considering the practicability of the fan, in addition to the 20-ton boiler ID fan need large power coupling direct transmission, the other uses the triangular belt type transmission.

For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.The weld and the main shaft of the impeller are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.After the production is completed, all products are tested for running and vibration values for reliable operation.There are a variety of accessories to choose from.



Technical data



series model

Boiler Fan

Rotation Speed
(r/min)

Boiler Fan

Total Pressure
(Pa)

Boiler Fan

Air Capacity
(m³/h)

Power
(kW)

5-11

Boiler Fan

16D 1450 66229074 3077461548 132220
17D 1450 747510242 3691273825 220250
18D 9601450 367911488 2901087634 75315
19D 9601450 409112802 34119103066 90400
20D 9601450 454214175 37794120212 132560
20.5D 9601450 476814901 55098129455 132630
21D 9601450 500315637 460671093640 160710



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

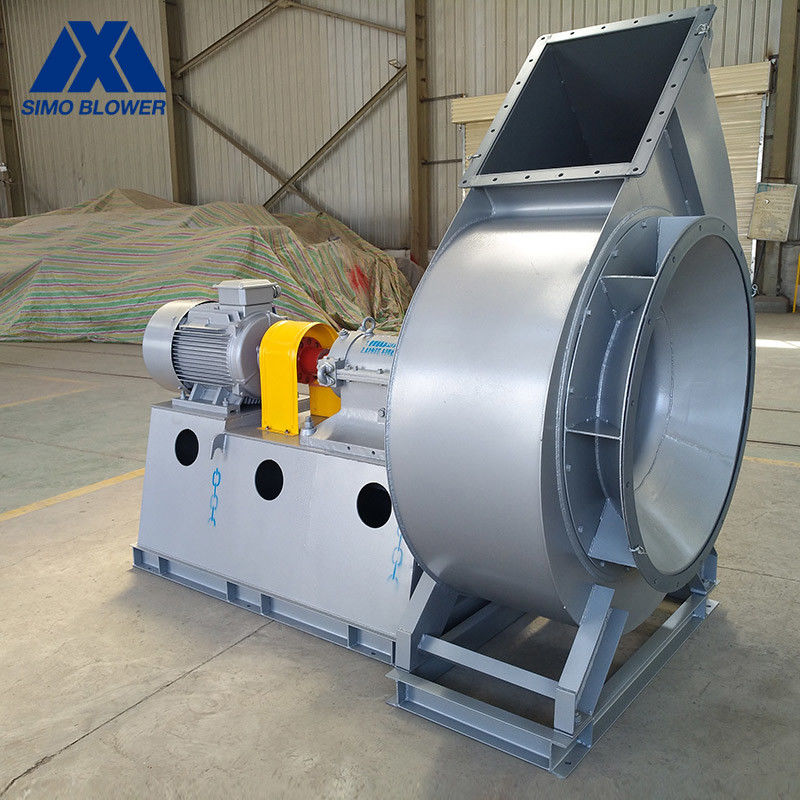

High Air Flow ID Boiler Fan Corrosion Resistant Exhaust Fan 0

High Air Flow ID Boiler Fan Corrosion Resistant Exhaust Fan 1
