Mine Ventilate Cement Fan Smoke Exhaust Centrifugal Air Blower

Mine Ventilate Cement Fan Smoke Exhaust Centrifugal Air Blower

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 4-09
Mounting:
Free Standing
Drivetrain:
V-belt Driven
After-sales Service Provided:
Field Installation, Commissioning And Training
System Type:
Single Inlet, Overhang Type
Medium:
Clean Air/Dusty Air
Color:
Customer's Requirement
Highlight:

High Light

Highlight:

process fans in cement plant

,

centrifugal air blower

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Mine Ventilate Cement Smoke Exhaust Centrifugal Air Blower Fan



Introduction



Mine Ventilate Cement Smoke Exhaust Centrifugal Air Blower Fan is suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.

No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.

The Mine Ventilate Cement Smoke Exhaust Centrifugal Air Blower Fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.





Technical data



series model

Blower Fan

Rotation Speed
(r/min)

Blower Fan

Total Pressure
(Pa)

Blower Fan

Air Capacity
(m³/h)

Power
(kW)

4-09

Blower Fan

6C 800 ~ 2240 220 ~ 2734 3684~20628 1.1 ~ 15
8C 630 ~ 1800 280 ~ 3143 6876~36427 2.2 ~ 37
10C 500 ~ 1250 299 ~ 2373 13945~48797 3 ~ 37
12C 400 ~ 1120 275 ~ 2746 19278~75552 3 ~ 75


Advantages and Features



1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.

2. The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.

3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. In the case of a monolithic bracket, the installation is very simple and requires little support from a professional technician.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

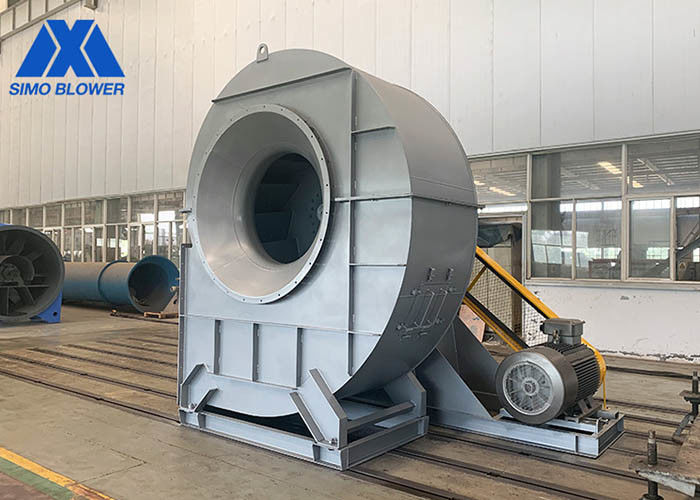

Mine Ventilate Cement Fan Smoke Exhaust Centrifugal Air Blower 0
