Cement Fan
>
Air Supply Ventilation Cement Fan Rotary Kiln Centrifugal Blower

Air Supply Ventilation Cement Fan Rotary Kiln Centrifugal Blower

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 4-09
Voltage:
380V/415V/440V/660V/6KV/10KV
Mounting:
Free Standing
Material:
Carbon Steel/Alloy Steel/Stainless Steel
After-sales Service Provided:
Field Installation, Commissioning And Training
Blade:
Backward
Power Source:
Three Phase AC Motor
Highlight:

High Light

Highlight:

forced draught fan

,

process fans in cement plant

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Air Supply Ventilation Cement Rotary Kiln Centrifugal Blower Fan



Introduction



The 4-09 series large-flow centrifugal fan is suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.

No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.

The Air Supply Ventilation Cement Rotary Kiln Centrifugal Blower Fanis applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.



Technical data



series model

Centrifugal Blower

Rotation Speed
(r/min)

Centrifugal Blower Total Pressure

(Pa)

Centrifugal Blower

Air Capacity
(m³/h)

Power
(kW)

4-09

Centrifugal Blower Fan

2.8A 2900 994606 11312356 1.5
3.2A 1450 ~ 2900 198 ~1300 844 3517 1.1 ~ 2.2
3.6A 1450 ~ 2900 247 ~ 1578 1332 5268 1.1 ~ 3
4A 1450 ~ 2900 329 ~ 2014 2006 7419 1.1 ~ 5.5
4.5A 1450 ~ 2900 416 ~ 2554 2856 10562 1.1 ~ 7.5
5A 1450 ~ 2900 502 ~ 3187 3864 15456 2.2 ~ 15
6A 960 ~ 1450 317 ~ 1139 4420 13353 1.5 ~ 4





Advantages and Features



1.The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.

2.When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

3.After the production is completed, all products are tested for running and vibration values for reliable operation.

4.When the pressure requirement is met, a large gas flow can be output, and the noise is very low.

5.In the case of a monolithic bracket, the installation is very simple and requires little support from a professional technician



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

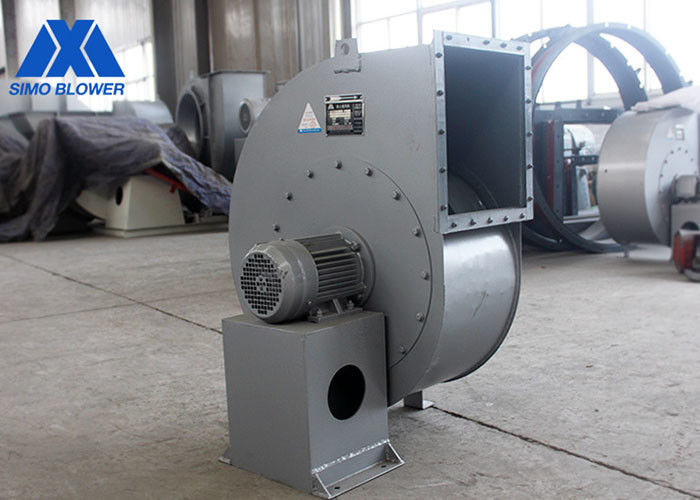

Air Supply Ventilation Cement Fan Rotary Kiln Centrifugal Blower 0
