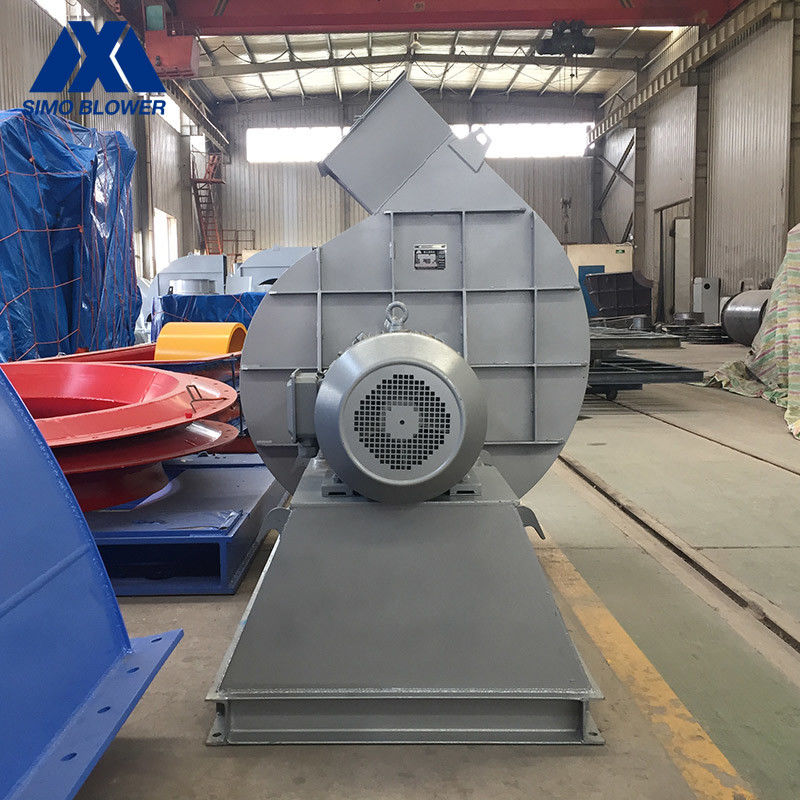

Coal-Fired Boiler Wear Resistant Cement Centrifugal Blower Fan
Introduction
The temperature of the medium is generally not more than 80°C, and the dust and hard fine particles contained in the medium are not more than 150mg/m3.
The Coal-Fired Boiler Wear Resistant Cement Centrifugal Blower Fan can also be used in cement kiln decomposition process, steel smelting and other special occasions use of high temperature fan (use heat resistant & high strength material).
According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.
Technical data
series | model |
Centrifugal Blower Rotation Speed |
Centrifugal Blower Total Pressure |
Centrifugal Blower Air Capacity |
Power (kW) |
9-08 Centrifugal Blower |
7.1C | 2900 | 10635~12427 | 12292~19360 | 75~110 |
8C | 1450~2900 | 3249~15955 | 8792~27696 | 18.5~200 | |
9C | 1450 | 4181~4869 | 12518~19717 | 30~45 | |
10C | 1450 | 5065~6143 | 17172~30052 | 55~75 | |
11.2C | 960~1450 | 3031~7747 | 15973~42221 | 30~132 | |
12.5C | 960~1450 | 3450~9713 | 22206~58695 | 45~250 | |
14C | 960~1450 | 4341~12285 | 31197~82463 | 75~400 | |
16C | 960~1450 | 5696~16250 | 46569~123090 | 185~850 |
Advantages and Features
1. The Coal-Fired Boiler Wear Resistant Cement Centrifugal Blower Fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.
2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.
3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.
4. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.
5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
6.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
