SIMO Centrifugal Boiler Id Fan Induced Draft Blower For Cement Industry

SIMO Centrifugal Boiler Id Fan Induced Draft Blower For Cement Industry

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-10
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 9-10
Motor:
SIEMENS/ABB/By Your Demand
Material:
Carbon Steel/Alloy Steel/Stainless Steel
Bearing:
SKF/FAG/By Your Demand
Main Shaft:
High-strength Carbon Structural Steel
Bearing Cooling:
Air Cooling Or Circulating Water Cooling
Impeller:
Dynamic Balanced
Highlight:

High Light

Highlight:

process fans in cement plant

,

centrifugal air blower

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Cement Industrial Boiler Induced Draft Centrifugal Blower Fan

Introduction



The 9-10 series centrifugal fan can output high gas pressure, suitable for conveying normal or high temperature clean gas/combustible gas/corrosive gas/mixed with a few impurities, light particles/debris/short fiber materials.

Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.



Technical data

series model

Centrifugal Blower

Rotation Speed
(r/min)

Centrifugal Blower

Total Pressure
(Pa)

Centrifugal Blower

Air Capacity
(m³/h)

Power
(kW)

9-10

Centrifugal Blower

8D 14502900 323115034 329714287 7.5110
9D 1450 41014597 469510717 1522
10D 1450 49585840 644015455 3037
11.2D 9601450 27057364 599021713 1575
12.5D 9601450 39759229 832730186 22110
14D 9601450 424911668 1169942409 37220
16D 9601450 557515425 1746363305 75315



Advantages and Features



1. Cement Industrial Boiler Induced Draft Centrifugal Blower Fan can output very high pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.

2. In the case of using the common base , the installation is very simple and basically does not require the support of professional technicians.

3. The bearing box is reserved with the temperature and vibration sensor installation position, which can conveniently install the fan operation monitoring device.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. Customized design according to customer performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.

6. The parts are closely matched and have good sealing performance to ensure the output pressure will not be reduced.

7. The impeller is calibrated by high standards for dynamic balance to ensure stable operation of the fan.

8. Running test and vibration value detection after the production is completed, the fan operation is reliable.

9. There are a variety of part options to choose from.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

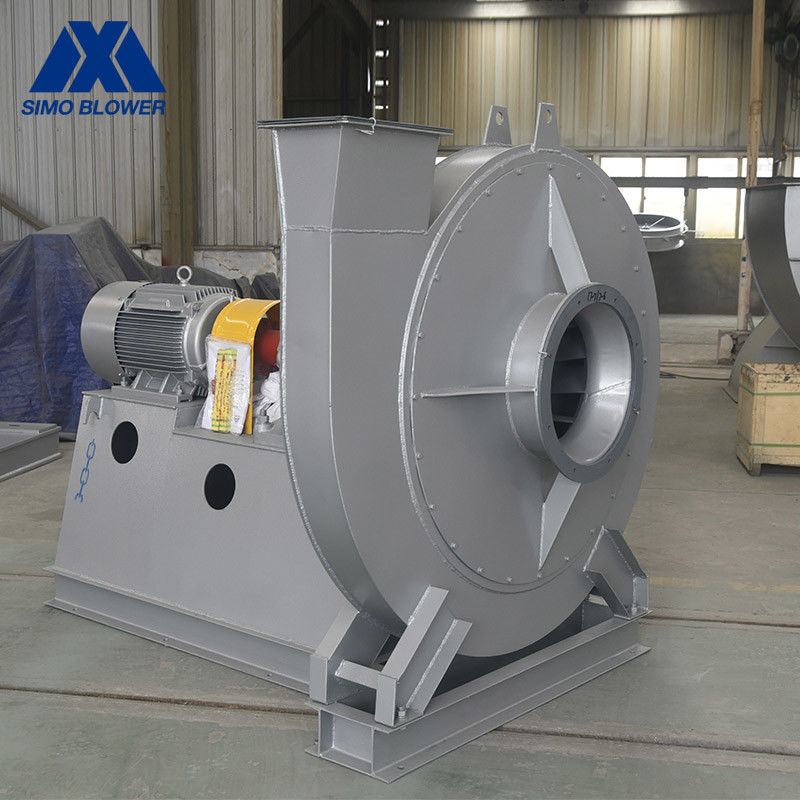

SIMO Centrifugal Boiler Id Fan Induced Draft Blower For Cement Industry 0
