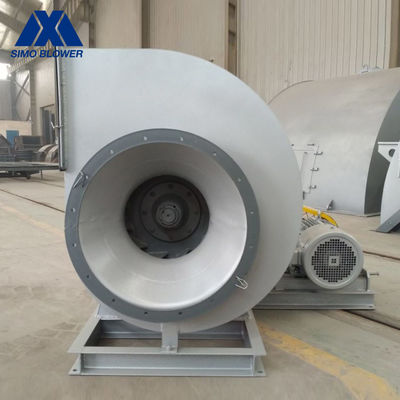

Industrial Boiler Induced Draught Single Inlet Blower Fan
Introduction
The 4-16 series centrifugal blower Fan can be used for indoor ventilation in general factories and large buildings.
It can be used as both an input gas and an output gas. The type of gas transported is air and other non-self-igniting, non-self-explosive, non-surrounding, harmless to the human body and is non-corrosive to steel materials.
Industrial Boiler Induced Draught Single Inlet Blower Fan can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.
Industrial Boiler Induced Draught Single Inlet Blower Fans can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.
Technical data
PRODUCT PARAMETERS
|
|||
centrifugal fan Application
|
Temperature | Normal temperature air, Hot air | |
Air composition |
Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
centrifugal fan Performance
|
Impeller diameter | 700~800 |
mm |
Speed of mainshaft | 630~1800 | rpm | |
Pressure range | 226~2501 | Pa | |
Flow range |
6110~41700 |
m3/h | |
centrifugal fan
Structure
|
Blade | Backward | |
Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
Drivetrain | V-belt | Can assign | |
Lubrication | Oil bath lubrication | ||
Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
centrifugal fan
System
configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
Impeller |
Q235, Q345, SS304, SS316, HG785, DB685... |
||
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
Bearing | FAG, SKF, NSK, ZWZ… | ||
centrifugal fan
Optional
components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc |
Advantages and Features
1. The centrifugal blower fan blade placement angle is optimized, more wear-resistant and longer service life.
2. The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.
3. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.
4. The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
5. The centrifugal blower fan's impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
6. There are a variety of accessories to choose from.
