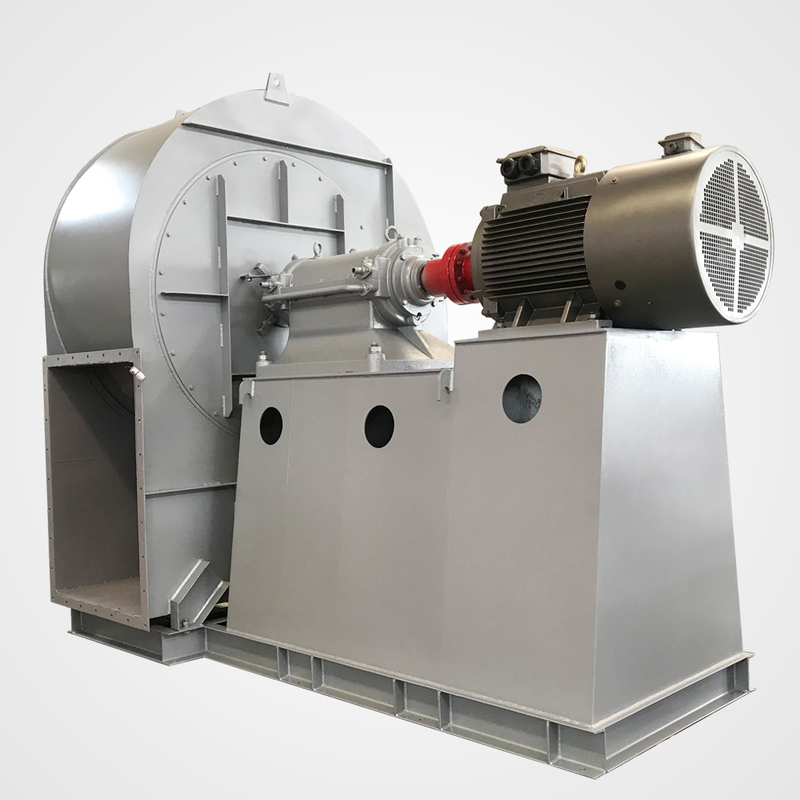

132kW Industrial Boiler Centrifugal Fan High Efficiency Draft Blower

Name: 132kW Industrial Boiler Centrifugal Fan High Efficiency Draft Blower
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 4-10
Price: 4,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Henan China
Brand Name:	SIMO
Certification:	CE, ISO9001:2008,TUV
Model Number:	SIMO Blower 4-10

Detail Information

Place of Origin:

Henan China

Brand Name:

SIMO

Certification:

CE, ISO9001:2008,TUV

Model Number:

SIMO Blower 4-10

Type:

Centrifugal Fan

Feature:

High Efficiency

After-sales Service Provided:

Field Installation, Commissioning And Training

Drivetrain:

Direct/Coupling Driven/V-belt Driven

Noise:

Optional

Bearing Type:

Rolling Bearing

Keywords:

4-10 Centrifugal Fan

Warranty:

1 Year

Keyword:

Boiler Fan,Industrial Boiler Blower,Induced Draft Fan

Highlight:

High Light

Highlight:

132kW industrial boiler fan

high efficiency draft blower

centrifugal boiler fan with warranty

Trading Information

Minimum Order Quantity:

1 Set

Price:

Negotiable

Packaging Details:

Export Wooden Case Packing, Steel pallet Packing

Delivery Time:

15-35 Days

Payment Terms:

T/T, L/C, Payment Term Is Negotiable

Supply Ability:

500 Sets Per Month

Product Description

132kw Industrial Boiler System Boiler Blower Induced Draft Fan Exhaust Fan

Product Attributes

Attribute	Value
Type	Centrifugal Fan
Feature	High Efficiency
After-sales Service Provided	Field installation, commissioning and training
Drivetrain	Direct/Coupling Driven/V-belt Driven
Noise	Optional
Bearing Type	Rolling bearing
Warranty	1 Year

Product Description

Our 132kW heavy-duty induced draft (ID) fan is engineered for industrial boiler systems requiring reliable high-volume flue gas extraction. Built to withstand continuous operation in demanding high-temperature environments, this robust blower ensures optimal combustion efficiency and safe exhaust gas removal.

Product Features

Can work stably at high medium temperature, and can output large gas flow with low noise when pressure requirements are met
Fan blade placement angle is optimized for increased wear resistance and longer service life
Air damper allows flexible adjustment of pressure and flow during operation. Option for variable frequency motor to adjust via speed changes
Material selection for impeller and main shaft based on working conditions (high-strength carbon steel, low-alloy steel, high-temperature alloy steel)
Fan systems with impeller diameters less than 1400mm at normal temperature don't require additional bearing cooling devices
Impeller is annealed to eliminate internal stress from welding, preventing creep and cracks
Welds undergo ultrasonic flaw detection to ensure no defects
Impeller undergoes high-standard dynamic balance correction for stable operation
Multiple accessory options available

Technical Specifications

The following data represents only part of our product's performance. If you can't find the data you need, please send us your performance requirements for customized design service.

Series no.	4-10 series	Feature selection
Performance	Impeller diameter	800-2950mm
	Rotation speed	580-1450r/min
	Pressure range	553-7218Pa
	Flow range	15229-810000m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI, DWDI, Overhung type
	Lubrication method	Oil bath, grease, lubrication oil station (can be specified)
Cooling method	Air cooling, Water cooling, Oil cooling (can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (can be specified)
Gas composition	Gas temperature	Normal \| Customer request \| ≥250°C
Gas composition	Gas characteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temperature gas \| Flammable/explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (can be specified)
	Impeller	Various materials available based on application (can be specified)
	Air inlet cone	Various materials available (can be specified)
	Casing	Various materials available (can be specified)
	Air damper	Various materials available (can be specified)
	Main shaft	High strength carbon steel, Alloy structural steel (can be specified)
	Bearing	ZWZ, SKF, FAG, NSK (can be specified)
	Bearing housing	Cast iron
Option parts	System base frame, Protective screening, Silencer, Flexible connections, Counter flange, Air damper, Electric actuator, Shock absorber, Couplings, Motor rain cover, Sensors, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

Production Process

We are strict with every step about the industrial centrifugal fan and axial fan.

132kW Industrial Boiler Centrifugal Fan High Efficiency Draft Blower
