| Place of Origin: | China |
|---|---|
| Brand Name: | SIMOBLOWER |
| Model Number: | SIMO Blower 7-09 |
| Minimum Order Quantity: | 1 |
| Price: | 5000 |
| Certification: | CE | Bearing Cooling: | Air Cooling Or Circulating Water Cooling |
|---|---|---|---|
| Lubrication: | Oil Bath Lubrication | Noise: | Optional |
| Impeller Test: | Ultrasonic Flaw Detection | System Type: | Single Inlet, Overhang Type |
| Medium: | Clean Air/Dusty Air | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
| Bearing Type: | Rolling Bearing | Motor Type: | Three Phase AC Motor |
| Air Flow: | High | Application: | Industrial |
| Efficiency: | High | Material: | Stainless Steel |
| Noise Level: | Low | Power: | 90KW |
| Pressure: | High | Product Name: | Centrifugal Flow Fan |
| Size: | Customized | Speed: | 1450rpm |
| Temperature Range: | -20 To +80℃ | Voltage: | 220V |
| Warranty: | 1 Year | ||
| High Light: | tobacco centrifugal flow fan,moisture proof centrifugal flow fan,tobacco high pressure centrifugal blower |
||

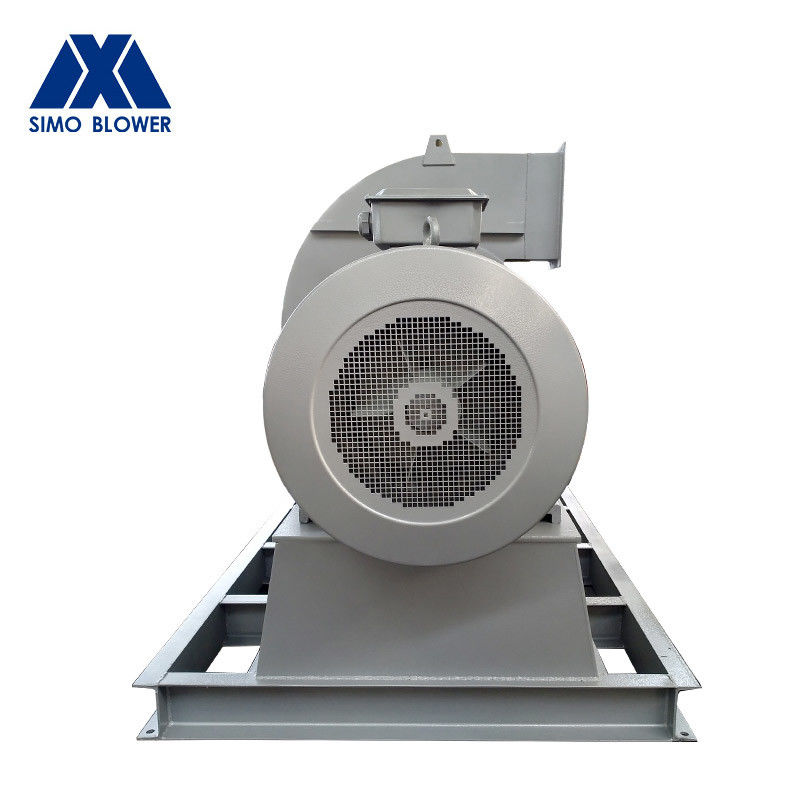

Introduction
Drying fan 9-19 type high-pressure centrifugal ventilator has the advantages of high efficiency, low noise, flat performance curve, and wide high-efficiency area compared with fans of the same type at home and abroad. Scope of application: This fan is generally used in forging furnaces and high-pressure forced Ventilated, and can be widely used to transport materials, air and non-corrosive, unnatural, and non-viscous gases. The dust and hard particles contained in the medium shall not exceed 150mg/cubic meter.
This fan is a single suction type, with a total of 13 machine numbers: 4, 4.5, 5, 5.6, 6.3, 7.1, 8, 9, 10, 11.2, 12.5, 14, and 16. It can be made into six left and right rotation angles of 0 degrees, 45 degrees, 90 degrees, 135 degrees, 180 degrees, and 225 degrees. There are two transmission modes: A type and D type.
Drying fan 9-26 flow rate Q: 36.6-2.51.5m3/mm full pressure P: 2763-16250Pa power N: 5.5-850KW, main use: generally used in forging furnaces, high-pressure forced ventilation and can be widely used to transport materials , transports air, is corrosion-free and unnatural, does not contain viscous substances and gases, and can be made into high-temperature resistant fans according to users.
Detail introduction
This series of fans is a single suction type, with a total of 13 machine numbers: 4, 4.5, 5, 5.6, 6.3, 7.1, 8, 9, 10, 11.2, 12.5, 14, and 16. It can be made into six left and right rotation angles of 0 degrees, 45 degrees, 90 degrees, 135 degrees, 180 degrees, and 225 degrees. There are two transmission modes: A type and D type.
Drying fan 9-26 flow rate Q: 36.6-2.51.5m3/mm full pressure P: 2763-16250Pa power N: 5.5-850KW, main use: generally used in forging furnaces, high-pressure forced ventilation and can be widely used to transport materials , transports air, is corrosion-free and unnatural, does not contain viscous substances and gases, and can be made into high-temperature resistant fans according to users.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
| 9-08 | 7.1D | 2900 | 10635～12427 | 12292～19360 | 75～110 |
| 8D | 1450～2900 | 3249～15955 | 8792～27696 | 18.5～200 | |
| 9D | 1450 | 4181～4869 | 12518～19717 | 30～45 | |
| 10D | 1450 | 5065～6143 | 17172～30052 | 55～75 | |
| 11.2D | 960～1450 | 3031～7747 | 15973～42221 | 30～132 | |
| 12.5D | 960～1450 | 3450～9713 | 22206～58695 | 45～250 | |
| 14D | 960～1450 | 4341～12285 | 31197～82463 | 75～400 | |
| 16D | 960～1450 | 5696～16250 | 46569～123090 | 185～850 |
Product Features
Provide factory measurement performance, vibration, and test report to prevent failure and ensure the operation of the fan in good condition.The converging and streamlined air inlet is made into a unitary structure and bolted to the inlet side of the fan.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
